DCEC Cummins ISB5.9 Automotive Engine — 170-220 HP, 5.9L Medium-Duty Diesel

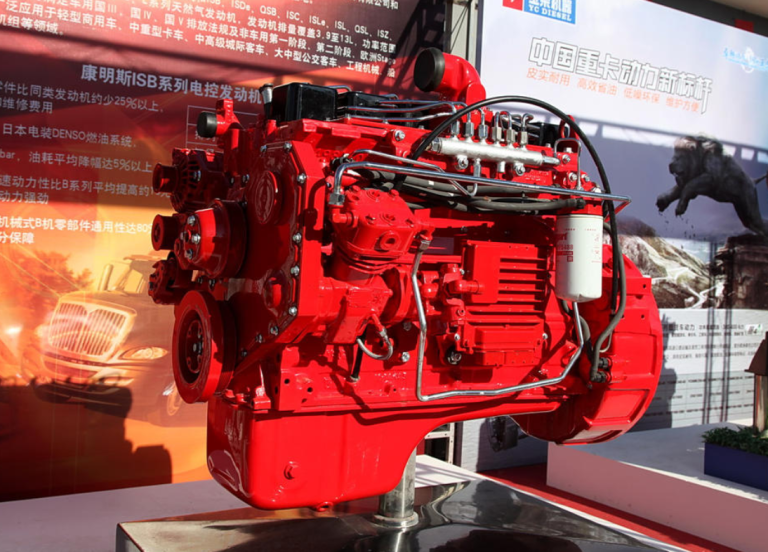

The DCEC Cummins ISB5.9 is a 5.9-liter inline six-cylinder medium-duty diesel engine manufactured by Dongfeng Cummins Engine Co., Ltd. (DCEC). Built on the legendary Cummins B Series platform — the most produced diesel engine family in history, with over 7 million units sold worldwide — the ISB5.9 delivers 170-220 HP (125-162 kW) and 560-800 N·m of torque for medium commercial vehicles.
What makes the ISB5.9 extraordinary is its power-to-weight ratio: at just ~453 kg dry weight, it is the lightest six-cylinder automotive diesel in its class — approximately 130-150 kg lighter than comparable 6.5-6.7L Chinese domestic engines. This weight advantage directly translates to higher payload capacity and lower fuel consumption for fleet operators.
ISB5.9 Engine Specifications
| Specification | Value |
|---|---|
| Engine Type | Inline 6-cylinder, 4-stroke, water-cooled, direct injection |
| Displacement | 5.9 L (5,880 cc) |
| Bore × Stroke | 102 mm × 120 mm |
| Valves per Cylinder | 4 (24 valves total) |
| Compression Ratio | 17.3:1 |
| Aspiration | Turbocharged & air-to-air intercooled |
| Fuel System | DENSO third-generation high-pressure common rail (HPCR), max 1800 bar, up to 7 injection events per cycle |
| Aftertreatment | SCR (Selective Catalytic Reduction) |
| Emission Standard | Euro IV / China IV through Euro V / China V |
| Rated Speed | 2500 RPM |
| Idle Speed | 650-750 RPM |
| Power Range | 125-162 kW (170-220 HP / PS) |
| Peak Torque | 560-800 N·m @ 1200-1700 RPM |
| Dry Weight | ~453 kg |
| Dimensions (L×W×H) | ~1095 × 744 × 905 mm |
| Oil System Capacity | ~11-13 L |
| Coolant Capacity | ~10-12 L |
| Electrical System | 24V, 6.6 kW starter motor |
| Cold Start | -15°C unaided; -41°C with intake preheater (Mohe -36°C certified) |
| Firing Order | 1-5-3-6-2-4 |
| Turbocharger | Holset wastegated |
| ECM | Cummins electronic control module, J1939 diagnostics |
Complete Model Lineup
The DCEC ISB5.9 is available in both Euro IV (China IV) and Euro V (China V) calibrations. The suffix 40 denotes Euro IV / China IV; 50 denotes Euro V / China V. The engine hardware is largely identical across emission levels — the primary differences are in the SCR aftertreatment sizing and ECU calibration.
Euro IV / China IV Models
| Model | Rated Power (kW@RPM) | Horsepower (PS) | Peak Torque (N·m@RPM) | Aspiration | Aftertreatment |
|---|---|---|---|---|---|
| ISB170 40 | 125 @ 2500 | 170 | 560 @ 1200-2100 | TC & Intercooled | SCR |
| ISB180 40 | 132 @ 2500 | 180 | 700 @ 1200-1700 | TC & Intercooled | SCR |
| ISB190 40 | 140 @ 2500 | 190 | 720 @ 1200-1700 | TC & Intercooled | SCR |
| ISB210 40 | 155 @ 2500 | 210 | 750 @ 1200-1900 | TC & Intercooled | SCR |
Euro V / China V Models
| Model | Rated Power (kW@RPM) | Horsepower (PS) | Peak Torque (N·m@RPM) | Aspiration | Aftertreatment |
|---|---|---|---|---|---|
| ISB170 50 | 125 @ 2500 | 170 | 560 @ 1200-1700 | TC & Intercooled | SCR |
| ISB180 50 | 132 @ 2500 | 180 | 700 @ 1200-1700 | TC & Intercooled | SCR |
| ISB190 50 | 140 @ 2500 | 190 | 720 @ 1200-1700 | TC & Intercooled | SCR |
| ISB210 50 | 155 @ 2500 | 210 | 750 @ 1300-1700 | TC & Intercooled | SCR |
| ISB220 50 | 162 @ 2500 | 220 | 800 @ 1500-1600 | TC & Intercooled | SCR |
B Series Heritage: 7 Million Engines and Counting
The ISB5.9 traces its lineage directly to the Cummins B Series, first introduced in 1984 as a joint development between Cummins and Case Corporation. Over four decades, the B Series has become the best-selling diesel engine platform in history, with over 7 million units produced across Cummins facilities worldwide — including DCEC’s Xiangyang plant in Hubei, China.
B Platform Evolution
| Generation | Fuel System | Emissions | Power Range | Key Change |
|---|---|---|---|---|
| 6BT / 6BTA (Mechanical) | Inline A/P7100 pump | Euro I-II | 120-210 HP | Original mechanical B Series |
| ISB5.9 (Electronic) | DENSO/Bosch HPCR | Euro III-V | 170-235 HP | Electronic common rail + SCR |
| QSB5.9 (Industrial) | Bosch HPCR 1600 bar | Euro III-V | 130-210 HP | Industrial derated calibration |
| B5.9-G (Generator) | Mechanical / Electronic | Non-regulated | 58-165 kW | 1500/1800 RPM constant speed |
All B Series variants share the same 102 × 120 mm bore/stroke architecture with approximately 80% internal parts interchangeability. A fleet operating a mix of mechanical 6BT trucks and electronic ISB5.9 trucks can share most oil filters, fuel filters, gaskets, and internal components — significantly reducing spare parts inventory costs.
DENSO Third-Generation Common Rail Fuel System
Unlike the ISDe4.5/ISDe6.7 which use Bosch HPCR systems, the ISB5.9 is equipped with a DENSO third-generation high-pressure common rail fuel system operating at up to 1800 bar. This system was specifically calibrated for the Chinese and emerging market fuel conditions, and supports up to 7 injection events per combustion cycle.
- Maximum injection pressure: 1800 bar — 12.5% higher than the 1600 bar Bosch system used in the ISDe series, delivering finer fuel atomization
- Up to 7 injection events per cycle — pilot, main, and post injections reduce combustion noise by 2-5 dB versus mechanical engines
- Pressure independent of RPM — full injection pressure available at idle, improving low-speed throttle response
- Smoke reduction of 50-80% — the DENSO common rail virtually eliminates visible black smoke under acceleration
- Fuel consumption reduced by 5%+ compared to the mechanical B5.9, with the best BSFC below 200 g/kW·h
- Enhanced cold start — pilot injection strategy enables reliable starting down to -41°C with intake preheating
- SCR aftertreatment — Cummins-supplied dosing system with single NOx sensor (OBD1+)
ISB5.9 vs QSB5.9 vs B5.9-G: Same Block, Different Mission
Because the 5.9L B Series block powers automotive, industrial, and generator applications, customers sometimes ask about interchangeability. The answer is no — while the core engine block is shared, the ECM calibration, governor logic, torque curve, and flywheel housing are all different.
| Parameter | ISB5.9 Automotive | QSB5.9 Industrial | B5.9-G Generator |
|---|---|---|---|
| Primary Application | Medium trucks, buses | Construction, agriculture | Generator sets (50/60 Hz) |
| Fuel System | DENSO HPCR 1800 bar | Bosch HPCR 1600 bar | Mechanical / electronic pump |
| Rated Speed | 2500 RPM | 2000-2400 RPM | 1500 / 1800 RPM (fixed) |
| Power Range | 170-220 HP | 130-210 HP | 58-165 kW (73-206 kVA) |
| Torque Curve | Wide plateau 1200-1700 RPM | Variable by application | Governed at fixed speed |
| Aftertreatment | SCR | DOC/DPF/SCR (by level) | None (non-regulated) |
| Dry Weight | ~453 kg | ~453 kg | ~430-460 kg |
| Flywheel Housing | SAE No. 2 (truck) | SAE No. 2 / No. 3 | SAE No. 2 (gen-drive) |
Always specify the correct application when ordering. An automotive ISB5.9 cannot replace a QSB5.9 in industrial equipment or a B5.9-G in a generator set, as the governor characteristics and load profiles are fundamentally different.
Where the ISB5.9 Fits in the DCEC Automotive Lineup
The ISB5.9 occupies the medium-duty segment (170-220 HP), positioned between the 4-cylinder ISDe4.5 and the 6-cylinder ISDe6.7. Its key differentiator is being a six-cylinder engine at a four-cylinder weight class.
| Engine | Cylinders | Displacement | Power | Peak Torque | Dry Weight | Best For |
|---|---|---|---|---|---|---|
| ISDe4.5 | 4 | 4.5 L | 140-220 HP | 450-820 N·m | ~350-380 kg | Light trucks, 6-12t GVW |
| ISB5.9 | 6 | 5.9 L | 170-220 HP | 560-800 N·m | ~453 kg | Medium trucks, 12-18t GVW |
| ISDe6.7 | 6 | 6.7 L | 185-300 HP | 700-1100 N·m | ~460-509 kg | Medium-heavy trucks, 18-25t GVW |
| ISC8.3 | 6 | 8.3 L | 230-315 HP | 900-1180 N·m | ~650-706 kg | Heavy trucks, 25-40t GCW |
| ISLe8.9 | 6 | 8.9 L | 270-400 HP | 1055-1700 N·m | ~707 kg | Heavy trucks, 40-60t GCW |
The ISB5.9 and ISDe6.7 overlap significantly in power (170-220 HP vs 185-300 HP) and weight (~453 kg vs ~460-509 kg). Choose the ISB5.9 for proven B Series simplicity and maximum parts availability; choose the ISDe6.7 for the newer D platform with four-valve cylinder heads, higher torque output, and broader power range up to 300 HP.
Competitive Comparison
| Parameter | DCEC ISB5.9 | Weichai WP6 | Yuchai YC6J | FAW CA6DE |
|---|---|---|---|---|
| Displacement | 5.9 L | 6.75 L | 6.5 L | 6.6 L |
| Cylinders | 6 | 6 | 6 | 6 |
| Power Range | 170-220 HP | 180-240 HP | 180-260 HP | 180-240 HP |
| Peak Torque | 560-800 N·m | 700-900 N·m | 650-950 N·m | 700-950 N·m |
| Torque Plateau | 1200-1700 RPM | 1200-1600 RPM | 1200-1600 RPM | 1300-1500 RPM |
| Dry Weight | ~453 kg | ~600 kg | ~580 kg | ~620 kg |
| Fuel System | DENSO HPCR 1800 bar | Bosch HPCR 1600 bar | Bosch HPCR 1600 bar | Bosch HPCR 1600 bar |
| B10 Life | ~600,000 km | ~500,000 km | ~500,000 km | ~500,000 km |
| Parts Commonality | 80% with B Series (7M+ units) | WP platform | YC platform | Xichai platform |
| Global Service | Cummins 190+ countries | China/emerging | China/emerging | China/FAW network |
- 130-170 kg lighter: At 453 kg, the ISB5.9 is dramatically lighter than every comparable six-cylinder Chinese domestic engine. This directly increases payload capacity by 130-170 kg per trip — a significant revenue advantage for weight-sensitive cargo like refrigerated goods, bulk liquids, and express parcels.
- DENSO 1800 bar fuel system: Higher injection pressure than competitors’ 1600 bar systems, with up to 7 injection events for quieter, cleaner, and more fuel-efficient combustion.
- 7 million B Series engines: The most proven medium-duty diesel platform in history. No competing engine family comes close in terms of global installed base and field validation.
- 80% parts commonality: With millions of mechanical B5.9/6BT engines already in service worldwide, spare parts are abundant, inexpensive, and available in virtually every country.
- -41°C cold start capability: Tested and certified in Mohe, China (Arctic Village, -36°C recorded), with reliable starting down to -41°C using intake preheating — critical for Russian, Central Asian, and Nordic markets.
Vehicle Applications
The ISB5.9 is the standard powertrain for the Dongfeng Tianjin (东风天锦) medium truck series — one of the best-selling medium commercial vehicle platforms in China. It is also widely used in the following applications:
| Vehicle Type | Typical GVW/GCW | Recommended Power | Notes |
|---|---|---|---|
| Medium Cargo Trucks (4×2, 6×2) | 12-18 t | 170-210 HP | Regional distribution, Dongfeng Tianjin |
| Refrigerated Trucks | 12-16 t | 180-210 HP | Weight-sensitive; 453 kg engine maximizes cargo capacity |
| Express / Parcel Delivery | 12-18 t | 170-190 HP | Stop-and-go; wide torque plateau reduces shifting |
| Hazardous Materials Transport | 12-18 t | 190-220 HP | Reliability critical; Cummins global service support |
| Medium City/Coach Buses | 8-12 m | 180-220 HP | Low noise; smooth power delivery for passenger comfort |
| Street Sweepers / Municipal | 12-16 t | 170-190 HP | PTO operation; low-speed torque for auxiliary hydraulics |
| Garbage Compactors | 12-16 t | 190-210 HP | Frequent idle-stop; durable B Series design |
| Water/Foam Fire Tenders | 12-16 t | 210-220 HP | Rapid response; pump PTO capability |
| Flatbed / Car Carriers | 12-18 t | 180-210 HP | Lightweight engine = more vehicle payload |
| Specialty Chassis | Varies | 170-220 HP | Custom PTO, cooling, and intake/exhaust configs |
Maintenance & Service Intervals
| Maintenance Item | Interval (km) | Interval (hours) | Notes |
|---|---|---|---|
| Engine Oil & Filter | 15,000-24,000 km | 500 hrs | Use CH-4/CI-4 or better; ~11-13 L capacity |
| Primary Fuel Filter (water separator) | 15,000-24,000 km | 500 hrs | Drain water daily; critical for DENSO HPCR protection |
| Secondary Fuel Filter | 30,000-48,000 km | 1,000 hrs | Use Cummins/Fleetguard or DCEC genuine filters only |
| Air Filter | 24,000-40,000 km | — | Inspect at each oil change |
| Valve Lash Adjustment | 240,000 km | 5,000 hrs | Or per INSITE diagnostic recommendation |
| Coolant Change | 96,000 km | 2,000 hrs | Use Cummins approved extended-life coolant |
| DEF Filter (SCR) | 320,000 km | 6,500 hrs | Use ISO 22241 compliant DEF/AdBlue only |
| Drive Belt | Visual at each service | — | Auto-tensioner; replace if cracking/glazing |
Why Buy DCEC ISB5.9 from BLSH Diesel?
- Genuine DCEC engines — manufactured at the Dongfeng Cummins Xiangyang plant, with full factory serialization and warranty
- Complete engine assemblies — including turbocharger, starter motor, alternator, ECM, flywheel, and clutch housing; ready for chassis installation
- Global export experience — shipped to Southeast Asia, Middle East, Africa, Latin America, Russia, and Eastern Europe; experienced with sea freight documentation and import compliance
- Customizable configurations — specify SAE flywheel housing, PTO, cold-weather packages (intake preheater, 6.6 kW starter), and intake/exhaust orientation
- Spare parts support — access to the full B Series and ISB5.9 parts catalog through Cummins/Fleetguard distribution
- Technical support — engine selection, installation guidance, and INSITE diagnostic troubleshooting
- Flexible lead times — standard models typically ship within 15-30 working days; contact us for current stock
For more information on our full DCEC automotive engine range, see our automotive engine catalog. For industrial or generator versions of the 5.9L B platform, see the B5.9 generator engine and QSB5.9 industrial engine pages. We also serve multiple industries including construction, logistics, and municipal services.
Frequently Asked Questions
What is the difference between ISB5.9 and the mechanical 6BT/6BTA?
The ISB5.9 is the electronically controlled, common-rail evolution of the mechanical 6BT/6BTA B Series engine. The ISB5.9 uses a DENSO high-pressure common rail fuel system (up to 1800 bar) with an ECM and SCR aftertreatment to meet Euro IV-V emissions, while the 6BT uses a mechanical inline injection pump and meets Euro I-II. They share approximately 80% internal parts, including the block, crankshaft, connecting rods, and most cooling/lubrication components. The ISB5.9 offers 5%+ better fuel economy, 2-5 dB lower noise, and virtually zero visible smoke, while the mechanical 6BT is simpler to maintain in regions without diagnostic infrastructure.
What is the difference between ISB5.9 and ISDe6.7?
These are two different engine platforms. The ISB5.9 uses the older B platform (102 × 120 mm bore/stroke, 5.9L) with a DENSO common rail system and 2 valves per cylinder on earlier versions (4 valves on later versions). The ISDe6.7 uses the newer D platform (107 × 124 mm, 6.7L) with a Bosch HPCR system and 4 valves per cylinder. The ISDe6.7 offers higher power (up to 300 HP vs 220 HP), higher torque (up to 1100 N·m vs 800 N·m), and a wider model range. However, the ISB5.9 is lighter (~453 kg vs ~509 kg), simpler, cheaper to maintain, and benefits from the massive global B Series parts network. Choose the ISB5.9 for medium-duty applications where proven reliability and low operating cost matter most; choose the ISDe6.7 when you need more power for heavier loads or hilly terrain.
Can I use an ISB5.9 automotive engine in a generator set or industrial application?
No. While the ISB5.9 shares the same 5.9L B Series block as the QSB5.9 industrial and B5.9-G generator engines, the ECM calibration, governor logic, torque curve, and flywheel housing are calibrated differently. The automotive ISB5.9 is designed for variable-speed operation up to 2500 RPM with a wide torque plateau, while a generator engine must hold a precise 1500 or 1800 RPM regardless of load. Using the wrong variant will cause speed instability, poor voltage regulation, and potential warranty issues. For generator applications, please see our B5.9 generator engines; for industrial use, see the QSB5.9.
What vehicles commonly use the DCEC ISB5.9?
The ISB5.9 is the standard engine for the Dongfeng Tianjin (东风天锦) medium truck series, one of China’s best-selling medium commercial vehicle platforms. It is also used in Dongfeng Duolika (多利卡) and Dongfeng KR trucks, as well as buses from Yutong, King Long, Higer, and Golden Dragon in the 8-10m range. In export markets, ISB5.9-powered vehicles operate throughout Southeast Asia, the Middle East, Africa, Russia, and Latin America in medium cargo, refrigerated transport, municipal, and specialty vehicle applications.
Does the ISB5.9 require DEF/AdBlue?
Yes. Both Euro IV and Euro V versions of the ISB5.9 use SCR (Selective Catalytic Reduction) aftertreatment, which requires Diesel Exhaust Fluid (DEF), also known as AdBlue or AUS 32 (ISO 22241). The Cummins dosing system injects DEF into the exhaust to reduce NOx emissions. DEF consumption is typically 3-5% of diesel fuel consumption. The engine will derate if DEF runs low or if the SCR system detects a malfunction.
What is the B10 life of the ISB5.9?
The ISB5.9 has a B10 design life of approximately 600,000 km under normal medium-duty operating conditions, consistent with the B Series platform’s durability. Well-maintained mechanical B5.9/6BT engines are known to exceed 1,000,000 km in long-haul service, though the electronic ISB5.9’s higher specific output and emissions equipment slightly reduce the design target. Actual service life depends heavily on maintenance discipline, load factors, fuel quality, and operating environment. Regular oil analysis and adherence to Cummins maintenance intervals are the best ways to maximize engine longevity.
