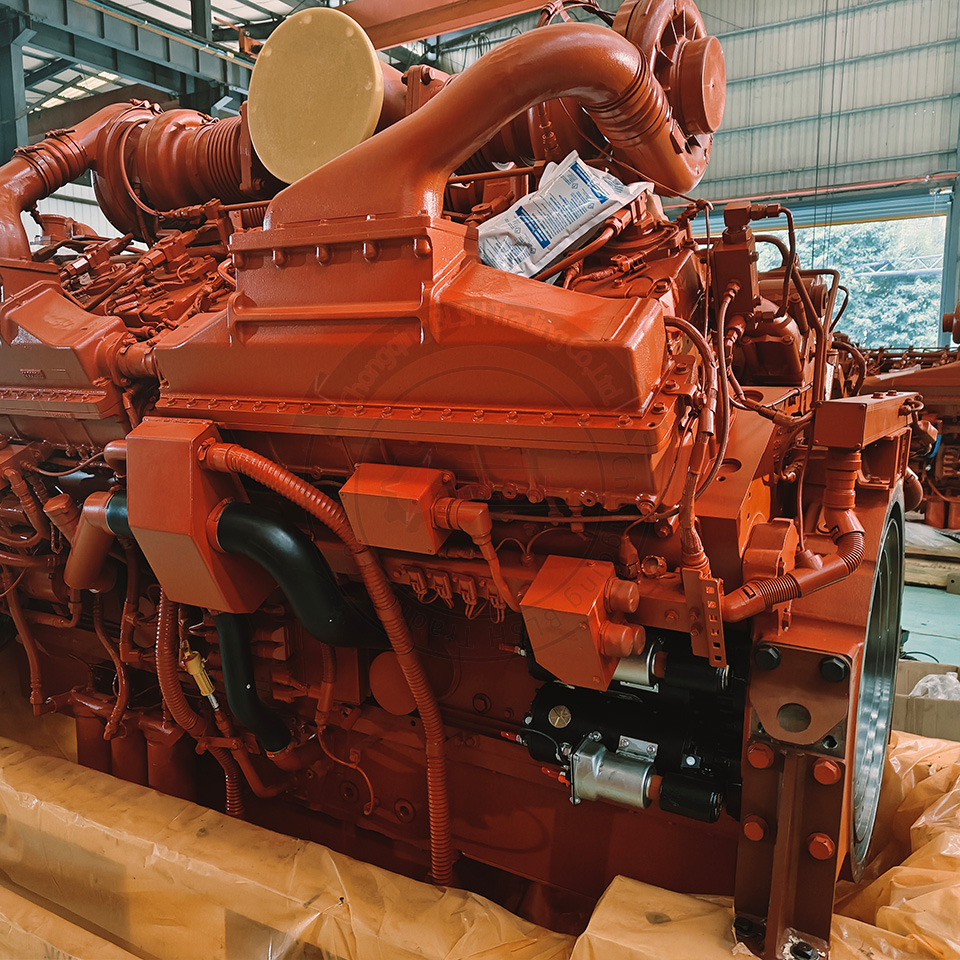

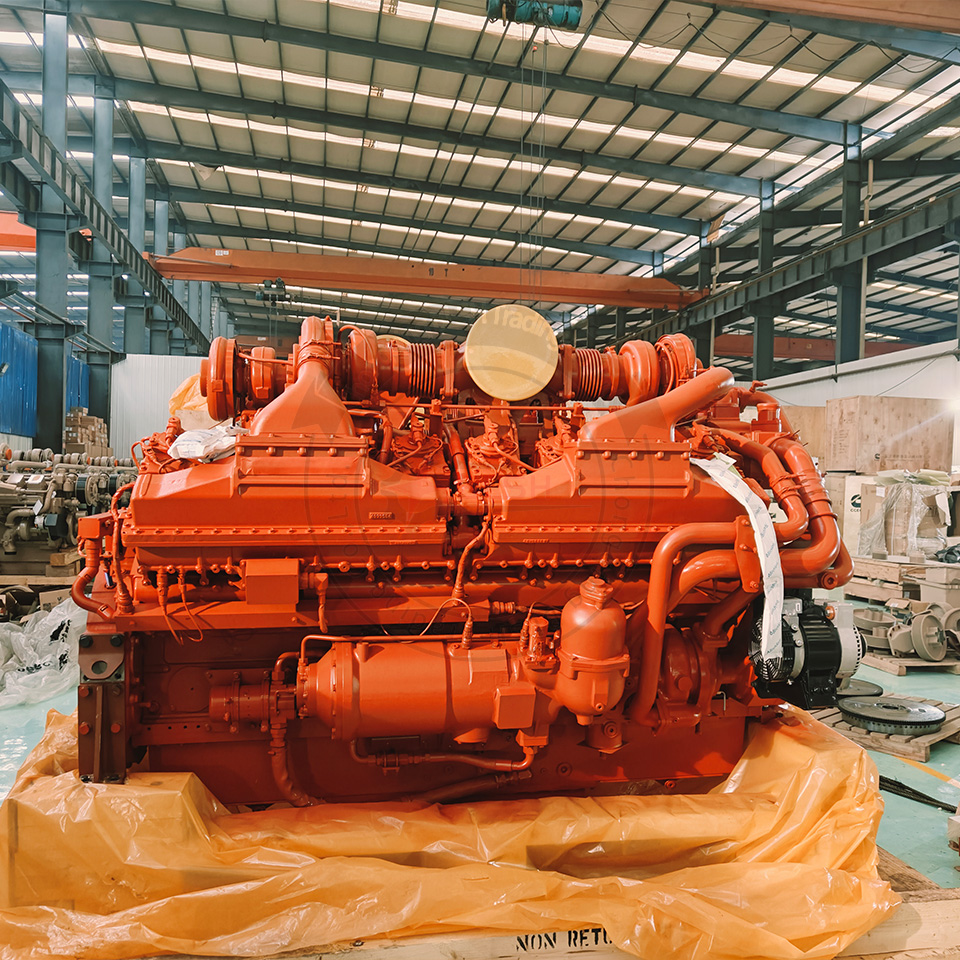

QSK60-C2300 Industrial Application Engine
| Engine Model | QSK60-C2300 |
| Maxi. Rating | C2300 HP @1800 RPM |
| Compression Ratio | 13.9 : 1 |
| Type | 4 Cycle, 60° Vee; 16 Cylinder |
| Fuel System | Celect Electronic |
| Aspiration | Turbocharged & Aftercooled |
| Emission Standard | Euro II |
| Displacement | 60 L |
| Bore * Stroke | 159 mm * 190 mm |
| Packing Size (L * W * H) | 2960 mm * 1780 mm * 2150 mm |
General Infomation of CCEC QSK60-C2300 Industrial Engine
| General Infomation of CCEC QSK60-C2300 Industrial Engine | |||
| Engine Model | QSK60-FR6330 | Standby Power | N/A |
| Maxi. Rating | 2300 HP @ 1900 RPM | Emission Standard | U.S. EPA Tier 1 |
| Curve & Datasheet | N/A | Peak Torque | 8620 N·m @ 1900 RPM |
| Compression Ratio | 14.5 : 1 | Displacement | 60.2 L |
| Type | 16 Cylinder | Bore * Stroke | 159 mm × 190 mm |
| Fuel System | CMI MCRS | Dry Weight (Fan Hub to Flywheel Engine) | N/A |
| Aspiration | Turbocharged Charge-Air-Cooled | Wet Weight (Fan Hub to Flywheel Engine) | N/A |
| Minimum Low Idle Speed | 600 RPM | Maximum Low Idle Speed | 600 RPM |
| Configuration | D593007CX03 | Packing Size (L * W * H) | 2960 mm * 1780 mm * 2150 mm |
| CPL Code Revision | 3451 | Firing Order | N/A |
Performance Data of CCEC QSK60-C2300 Industrial Engine
| Engine Performance Data CCEC QSK60-C2300 Industrial Engine | ||||
| Advertised Power | Peak Torque | |||
| Engine Speed | 2300 RPM | 1900 RPM | ||
| Output Power | 1715 kW | 1900 kW | ||
| Torque | 8620 N·m | 1900 N·m | ||
| Friction Horsepower | 75 kW | 43 kW | ||
| Intake Manifold Pressure | 241 kPa | 184 kPa | ||
| Turbo Comp. Outlet Pressure | 255 kPa | 190 kPa | ||
| Turbo Comp. Outlet Temperature | 207 °C | 177 °C | ||
| Inlet Air Flow | 951 L/s | 600 L/s | ||
| Charge Air Flow | 65 kg/min | 41 kg/min | ||
| Exhaust Gas Flow | 2259 L/s | 1674 L/s | ||
| Exhaust Gas Temperature | 451 °C | 551 °C | ||
| Heat Rejection To Ambient Air | 53 kW | 42 kW | ||
| Heat Rejection To Exhaust Gas | 512 kW | 383 kW | ||
| Heat Rejection To HTC Coolant | 189 kW | 194 kW | ||
Advantages of CCEC QSK60-C2300 Industrial Engine
Superior Environmental Adaptability
Optimized design enhances adaptability to high altitudes, extreme temperatures, and complex loads, ensuring stable output under diverse conditions.
- Exceptional Performance
Advanced Fuel Technology
Incorporates a globally leading high-pressure common rail fuel system and fully electronic control module, achieving ultra-high fuel injection pressure. Combined with a swirl harmonic intake port design and Cummins-proprietary high-pressure ratio turbocharger, it delivers peak power output and transient response.
High Efficiency and Energy Savings
Balances high torque and rapid response with excellent fuel economy, significantly reducing long-term operational costs.
- Ultra-Long Durability
Reinforced Structural Design
High-strength integrated cylinder block and head minimize mechanical stress, reduce failure rates, and ensure extended service life.
Intelligent Lubrication and Filtration System
Equipped with pre-lubrication, Centriguard centrifugal filters, CENTINEL continuous oil renewal system, and two-stage Fleetguard filters, extending maintenance intervals by 50% and reducing downtime.
- High Reliability
Compact Modular Architecture
Modular integration lowers component complexity, reduces failure rates, and delivers excellent vibration and noise control.
Stable Full-Condition Output
Maintains optimal performance under altitude variations and load fluctuations, ideal for harsh environments like mining and high-altitude operations.
- Eco-Friendly Emissions Compliance
Clean Combustion Technology
Optimized combustion chamber design complies with China Non-Road Stage III emission standards without additional aftertreatment, lowering compliance costs.
Certified Environmental Compliance
Authoritative emission certifications ensure readiness for evolving environmental regulations.
- Hassle-Free Maintenance
Smart Diagnostic Tools
INSITE software (Windows-based) enables intuitive fault diagnosis, real-time monitoring, and faster troubleshooting.
Modular and Universal Design
Highly standardized components support rapid assembly/disassembly and cross-platform compatibility, reducing spare parts inventory and maintenance costs.
Comprehensive Value
Through technological innovation and design optimization, this engine achieves a balance of power, reliability, eco-compliance, and cost-effectiveness. Ideal for non-road applications such as engineering machinery and agricultural equipment, it delivers an efficient, durable, and user-friendly power solution.
