CCEC QSK19 Industrial Engines Detailed information

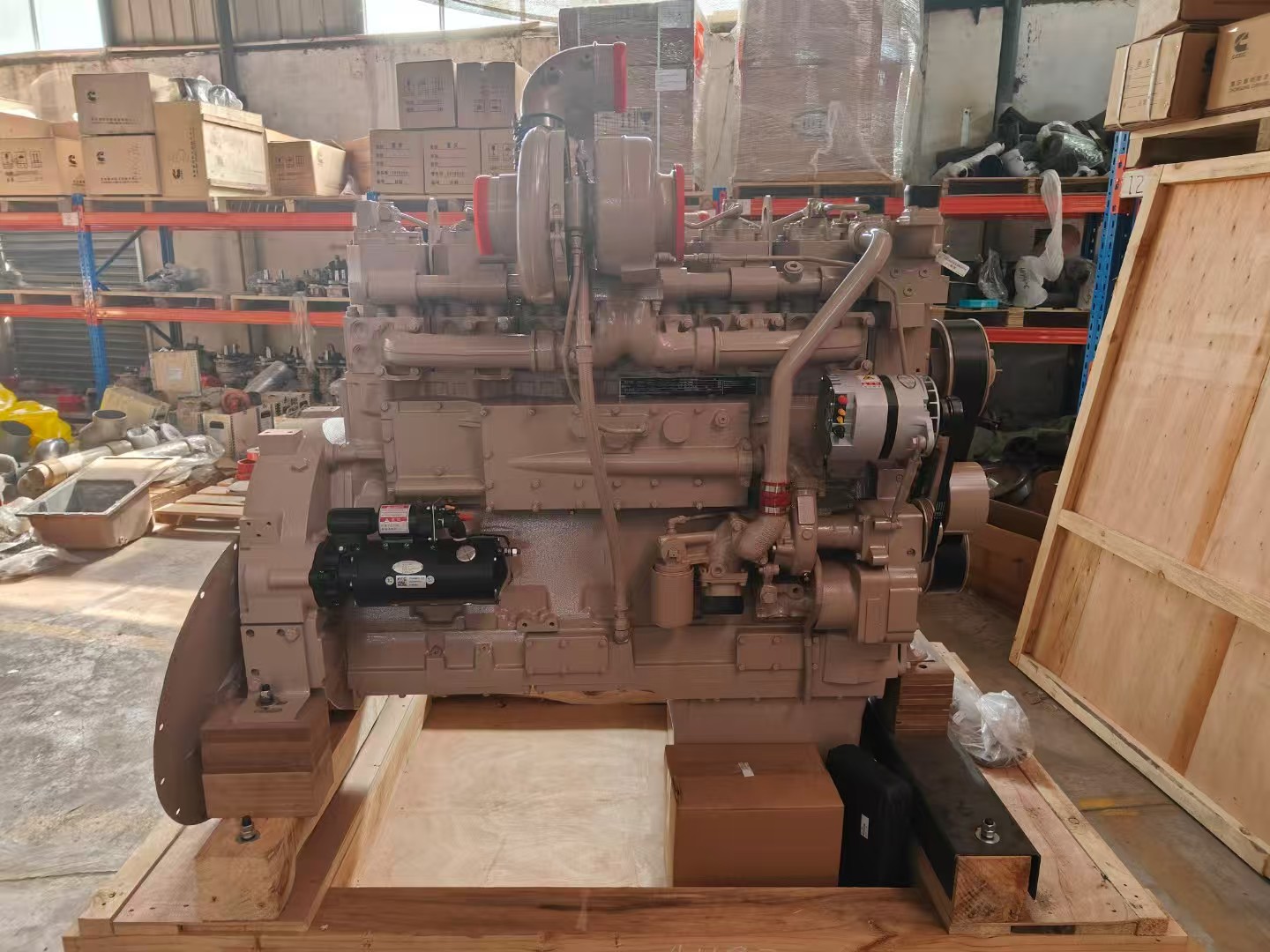

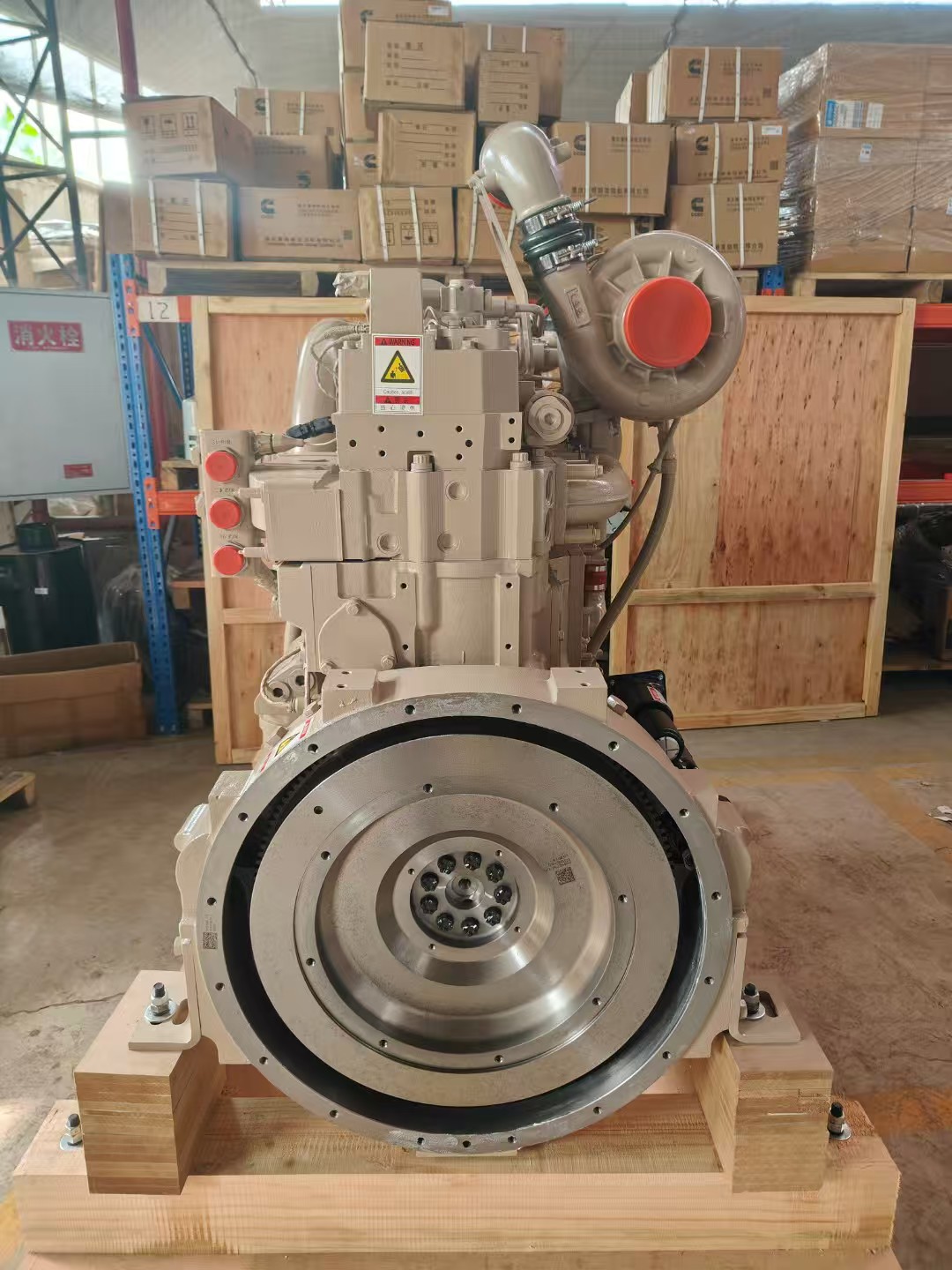

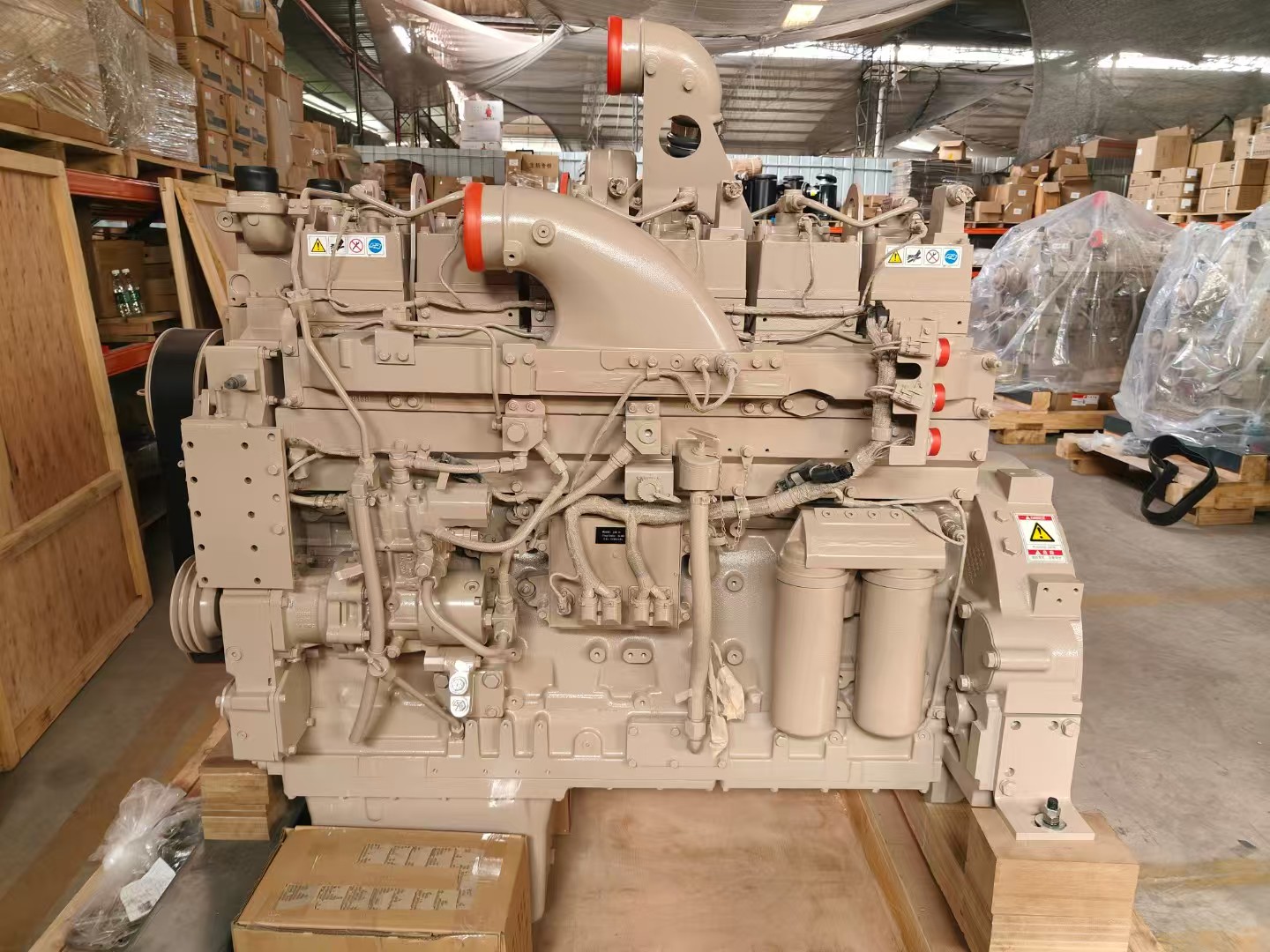

The CCEC QSK19 series industrial engine is a robust and versatile power solution designed for demanding industrial applications. Below is a detailed breakdown of its key features and configurations:

Key Specifications:
Engine Type: Inline 6-cylinder, 19-liter four-stroke engine.
Cylinder Diameter: 159 mm (6.25 inches).
Stroke: 159 mm (6.25 inches).
Fuel System: PT fuel system.
Aspiration: Turbocharged.
Power Range: 506 hp to 815 hp (377 kW to 608 kW).
Torque Range: 2407 Nm to 3084 Nm.

Configurations:
The QSK19 series offers three configurations to achieve varying performance outputs:
Turbocharged Engine (T):
Equipped with a turbocharger for increased power and efficiency.
Suitable for applications requiring moderate power output.
Turbocharged with Water-to-Air Intercooler (Single A):
Features a water-to-air intercooler to cool the compressed air from the turbocharger.
Enhances engine performance and efficiency by reducing intake air temperature.
Turbocharged with Air-to-Air Intercooler (Double A):
Utilizes an air-to-air intercooler for more effective cooling of the intake air.
Ideal for high-performance applications requiring maximum power and efficiency.

Model Naming Convention:
T: Turbocharged engine.
Single A: Turbocharged with water-to-air intercooler.
Double A: Turbocharged with air-to-air intercooler.

Industrial Power Group Solutions:
The QSK19 series is part of a comprehensive industrial power solution that integrates:
Air Intake System: Optimized for efficient airflow.
Exhaust System: Designed to meet emission standards.
Cooling System: Ensures optimal operating temperatures.
Control System: Advanced engine management for reliability and performance.
Transmission and Hydraulic Accessories: Customizable for specific applications.

Specialized Products:
Explosion-Proof Engines: Designed for hazardous environments.
Generators: Reliable power generation solutions.
Water Pump Groups: Engine-driven pumps for industrial and emergency use.
Ultra-Low Temperature Engine Power Groups: Engineered to operate in extreme cold conditions.

Applications:
The CCEC QSK19 series is suitable for a wide range of industrial applications, including:
Power generation.
Mining and construction equipment.
Oil and gas operations.
Marine propulsion and auxiliary power.
Industrial machinery and heavy equipment.

The CCEC QSK19 series stands out for its flexibility, power, and reliability, making it a preferred choice for industrial power solutions across various sectors.
