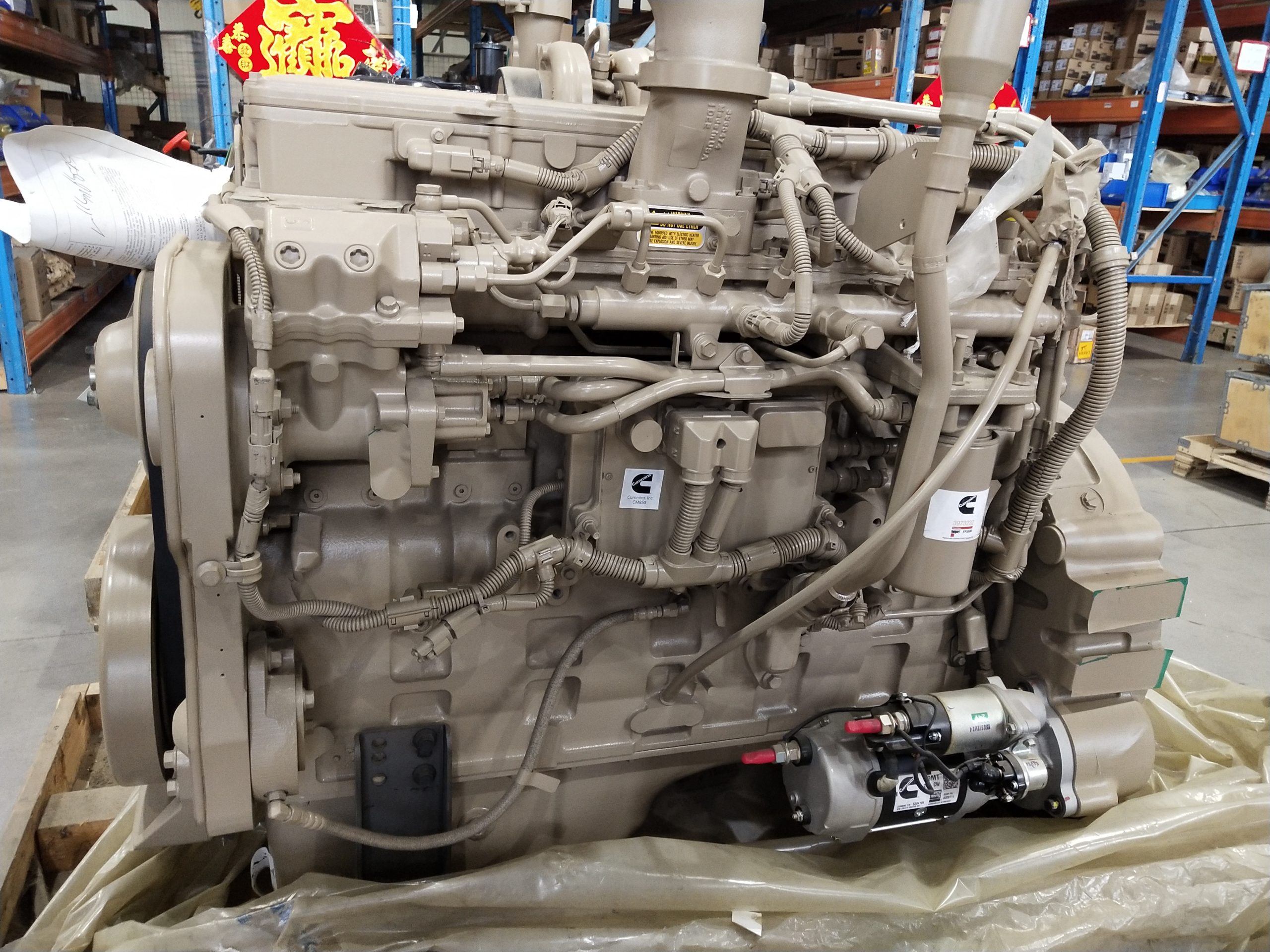

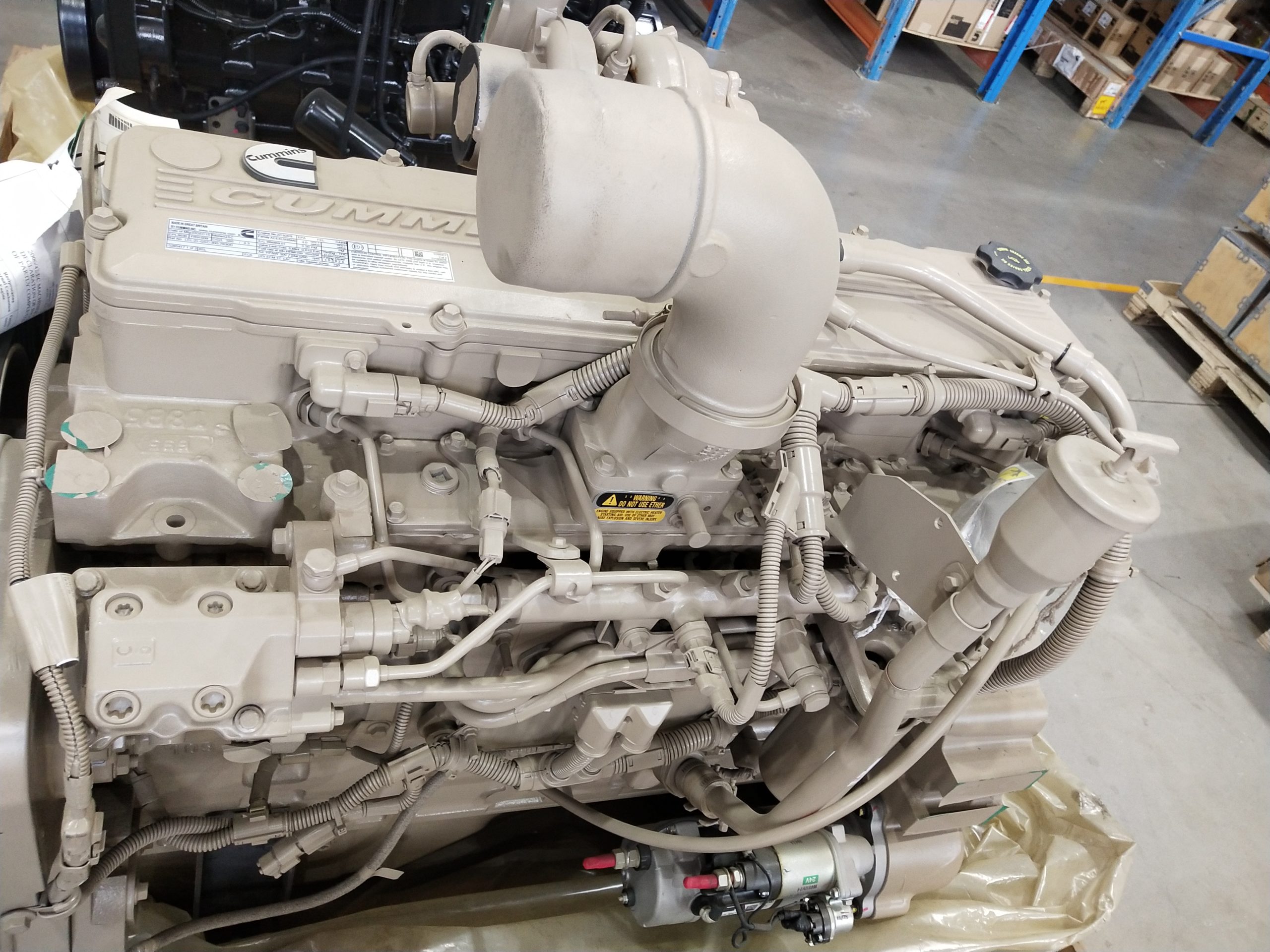

QSC8.3 Construction Machinery Engines Basic information

Engine Type:6 – Cylinder; In – line; 4 – Cycle
Displacement:8.3 L
Rated Speed:2200 – 2400 RPM
Advertised Power:215 HP to 260 HP @ 2200 – 2400 RPM
Peak Torque:980 to 1080 N.m. @ 2200 – 2400 RPM
Bore * Stroke:114mm*135 mm
Packing Size (L * W * H):1180mm * 1010mm * 980mm
Dry Weight:980-1150kg
DONGFENG CUMMINS

DCEC QSC8.3 Construction Machinery Engines Detailed information

The text you provided describes the Dongfeng Cummins Joint Venture Plant (DCEC), which was established in 1986 as a joint venture between Dongfeng and Cummins USA, with Cummins holding a 50% stake. The plant operates under Cummins’ technology and product line, producing engines that are widely used in various heavy-duty applications.
One of the notable engines mentioned is the Cummins QSC8.3-C, which is known for its versatility and reliability. It is commonly used in:
Heavy trucks
Excavators
Road rollers
Bulldozers
Cranes
Water pumps
Engine power packs
Key Features of the Cummins QSC8.3-C Engine:
High Fuel Efficiency: Designed to optimize fuel consumption, making it cost-effective for heavy-duty operations.
Advanced Integrated Design: Incorporates Cummins’ advanced engineering for seamless performance.
Sophisticated Manufacturing: Ensures high-quality production standards.
Holset Exhaust Gas Wastegate: Enhances turbocharger efficiency and engine performance.
Rotor High-Pressure Fuel Pump: Delivers precise fuel injection for better combustion and power output.
Platform Honing Designed Cylinder Liner: Improves durability and reduces friction, contributing to longer engine life.
Durable and Excellent Performance: Known for its reliability and ability to perform under demanding conditions.
This engine is a testament to Cummins’ commitment to innovation, efficiency, and durability in the field of diesel engines. It is widely trusted in industries requiring robust and dependable power solutions.

Engine ModelGoverned(KW@RPM)Peak Torque(Nm@RPM)Intake
QSC8.3-C215-30160 KW@2200 RPM980 Nm@1350 RPMSupercharged intercooling
QSC8.3-C220-30162 KW@2000 RPM950 Nm@1350 RPMSupercharged intercooling
QSC8.3-C240-30179 KW@2500 RPM1040 Nm@1350 RPMSupercharged intercooling
QSC8.3-C260-30194 KW@2200 RPM1135 Nm@1350 RPMSupercharged intercooling
QSC8.3-C260-31194 KW@2400 RPM1080 Nm@1500 RPMSupercharged intercooling
