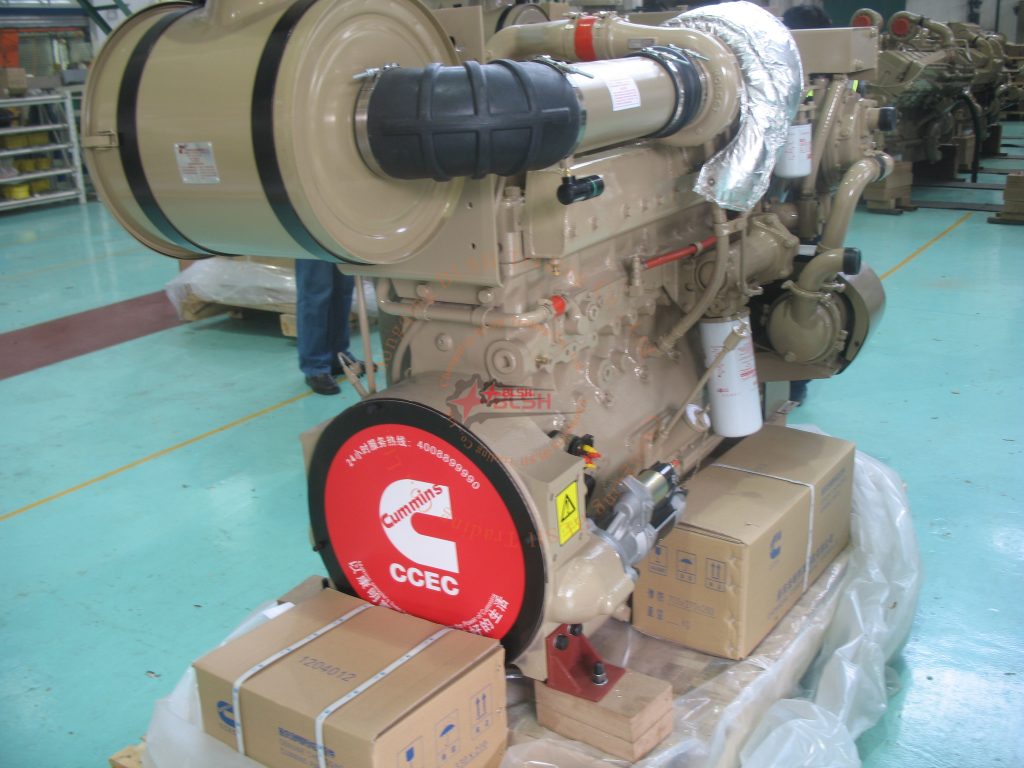

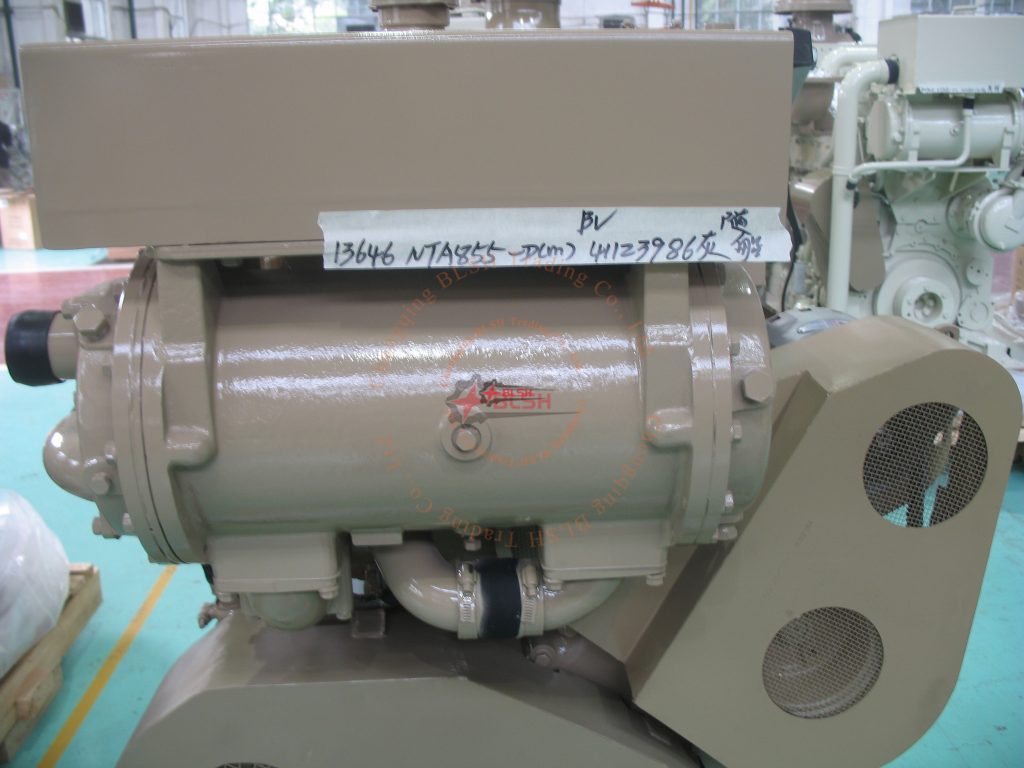

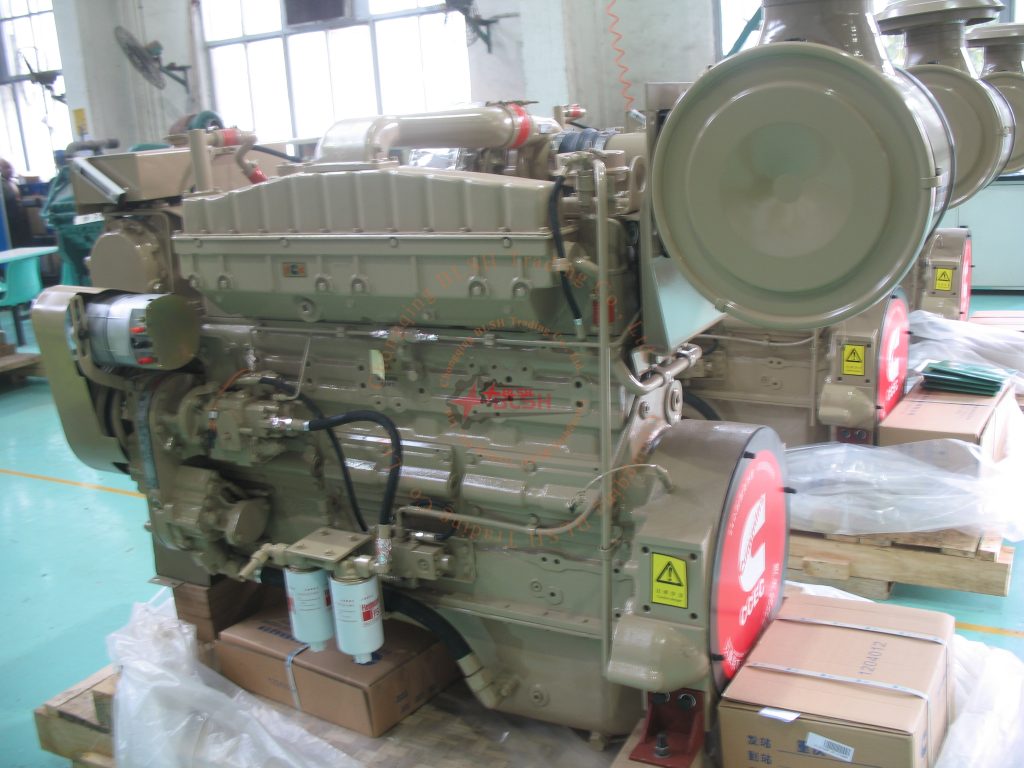

CCEC NT855 Marine Auxiliary Engines Detailed Information

The CCEC NTA855-DM series marine auxiliary engine is a robust and versatile engine designed for marine applications. Here’s a detailed breakdown of its features and configurations:
Key Specifications:
Cylinder Configuration: 6-cylinder inline
Displacement: 14 liters
Engine Type: Four-stroke
Bore: 140 mm (5.5 in)
Stroke: 152 mm (6.0 in)
Fuel System: PT Fuel System
Turbocharger: Equipped with a turbocharger
Power Range: 241 HP to 425 HP (180 kW to 317 kW)
Torque Range: 1260 N.m to 2234 N.m
Engine Configurations:
The CCEC NTA855-DM series offers different configurations based on the type of turbocharging and cooling systems. These are denoted by specific codes in the engine model name:
T: Turbocharged engine
TA: Turbocharged with a water-air intercooler
TAA: Turbocharged with an air-air intercooler
These configurations allow the engine to be tailored to different performance and efficiency requirements, depending on the marine application.
Exhaust System:
Standard: All CCEC marine auxiliary engines come with a dry-type exhaust system, which includes a dry-type exhaust manifold and a dry-type turbocharger.
Upgrade Option: CCEC provides an upgrading service to modify the dry-type exhaust system into a water-cooled exhaust system. This upgrade is particularly important for passenger boat projects, where enhanced cooling and reduced heat emissions are critical for safety and comfort.
Applications:
The CCEC NTA855-DM series is well-suited for a variety of marine auxiliary applications, including:
Power generation
Pumping systems
Auxiliary propulsion
Other onboard systems requiring reliable and efficient power.
Advantages:
High Power and Torque Output: With a power range of up to 425 HP and torque up to 2234 N.m, the engine is capable of handling demanding marine environments.
Flexible Configurations: The availability of different turbocharging and intercooling options allows for customization based on specific operational needs.
Upgradeable Exhaust System: The option to upgrade to a water-cooled exhaust system makes it suitable for passenger boats and other applications where heat management is crucial.
Overall, the CCEC NTA855-DM series is a reliable and adaptable marine auxiliary engine, offering a balance of power, efficiency, and customization options for various marine applications.
