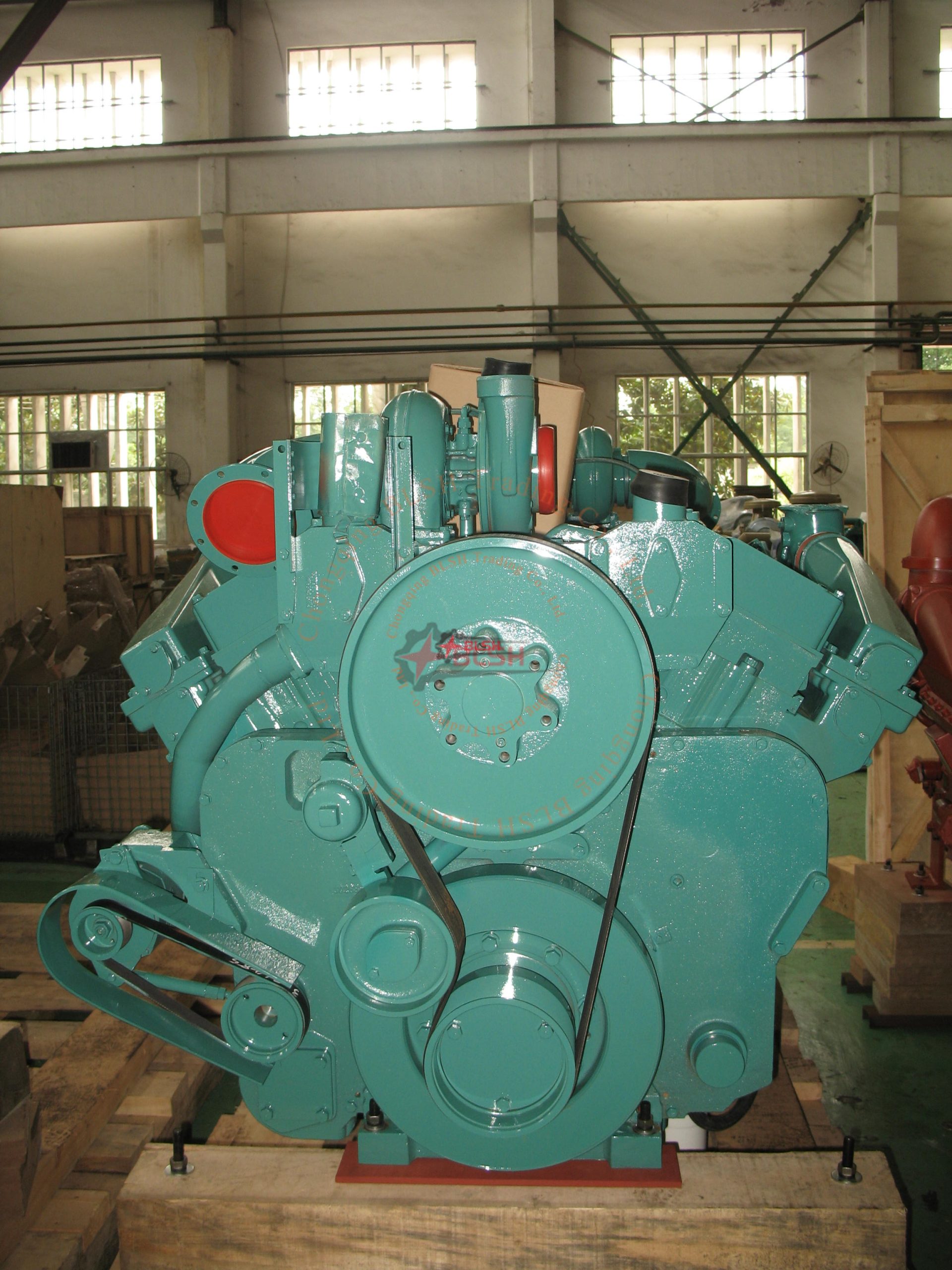

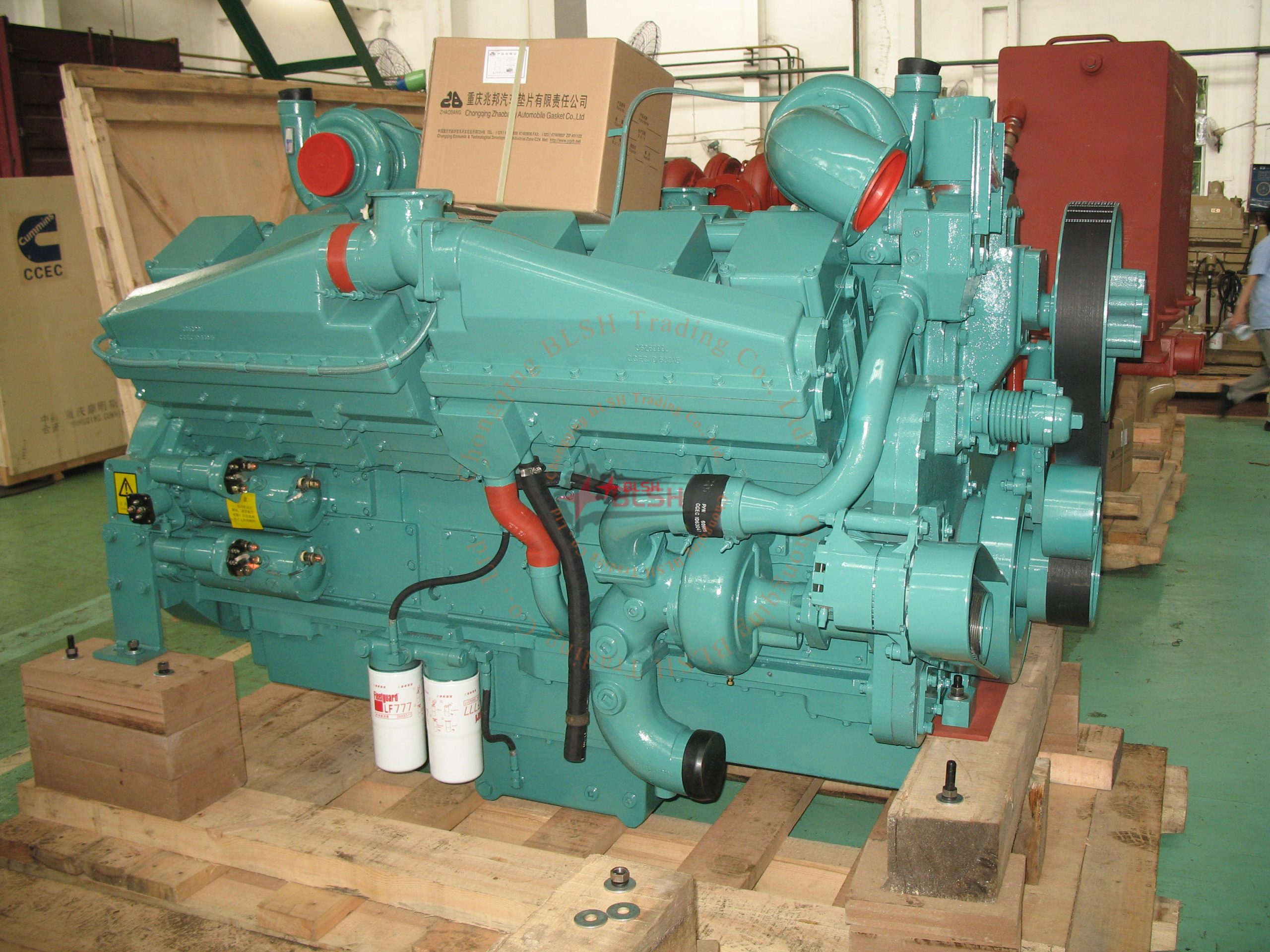

CCEC KTA38 Marine Auxiliary Engines Detailed information

The CCEC K38-DM series marine auxiliary engine is a robust and versatile engine designed for marine applications. Here’s a detailed breakdown of its features and configurations:
Key Specifications:
Engine Type: V Type, 12-cylinder, four-stroke engine.
Displacement: 38 liters.
Bore and Stroke: 159 mm (6.25 in) for both bore and stroke, making it a square engine.
Fuel System: Equipped with a PT Fuel System, which is known for its precision and reliability in fuel delivery.
Turbocharging: Comes with a turbocharger for enhanced performance and efficiency.
Power Range: 750 HP to 1350 HP (560 kW to 1007 kW).
Torque Range: 3921 N.m to 6175 N.m.
Configurations:
The CCEC K38-DM series offers different configurations based on turbocharging and intercooling systems, which are indicated by specific codes in the engine model name:
T: Turbocharged engine.
TA: Turbocharged with a water-air intercooler.
TAA: Turbocharged with an air-air intercooler.
These configurations allow the engine to be tailored to different performance and efficiency requirements, depending on the specific marine application.
Exhaust System:
Standard: All CCEC marine auxiliary engines come with a dry-type exhaust system, which includes a dry-type exhaust manifold and a dry-type turbocharger. This system is simpler and requires less maintenance compared to water-cooled systems.
Upgrade Option: CCEC provides upgrading services to a water-cooled exhaust system for projects that require it, such as passenger boats. This modification involves converting the dry-type exhaust system into a water-cooled system, which is often necessary for reducing heat and improving safety in passenger vessels.
Applications:
The CCEC K38-DM series is suitable for a wide range of marine applications, particularly where reliable auxiliary power is needed. The ability to upgrade to a water-cooled exhaust system makes it especially appealing for passenger boat projects, where safety and comfort are paramount.
Summary:
The CCEC K38-DM series is a high-performance marine auxiliary engine with a flexible design that can be adapted to various marine needs. Its turbocharged configurations, combined with the option for a water-cooled exhaust system, make it a versatile choice for both commercial and passenger marine applications. The engine’s power and torque ranges ensure it can handle demanding tasks while maintaining efficiency and reliability.
