KTA38 Industrial Engines Basic information

Engine Type:12 Cylinders, V Type
Displacement:38L
Rated Speed:1900 – 2100 RPM
Emission Standards:Euro II
Advertised Power:925 – 1100 HP @ 1800 – 2100 RPM
Peak Torque:4095 – 4702 N.m @ 1300 – 1500 RPM
Bore * Stroke:159 mm * 159 mm
Dry Weight:3606 – 3719 kg
Packing Size (L * W * H):2300 mm * 1700 mm * 2000 mm
Contact us
CHONGQING CUMMINS

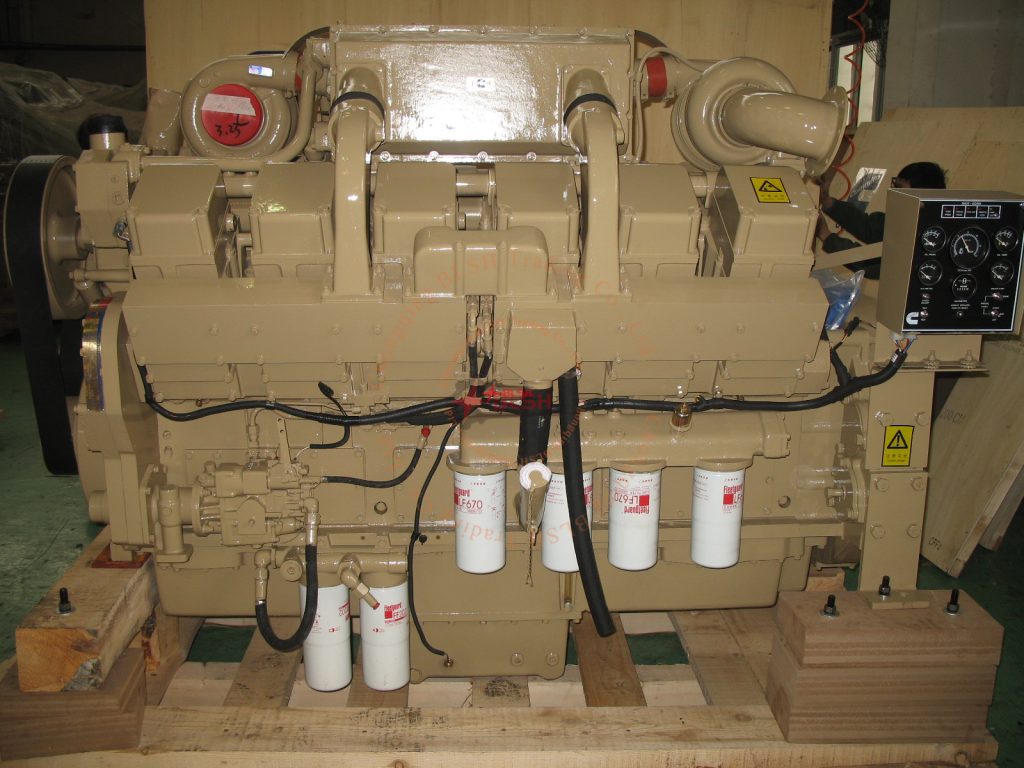

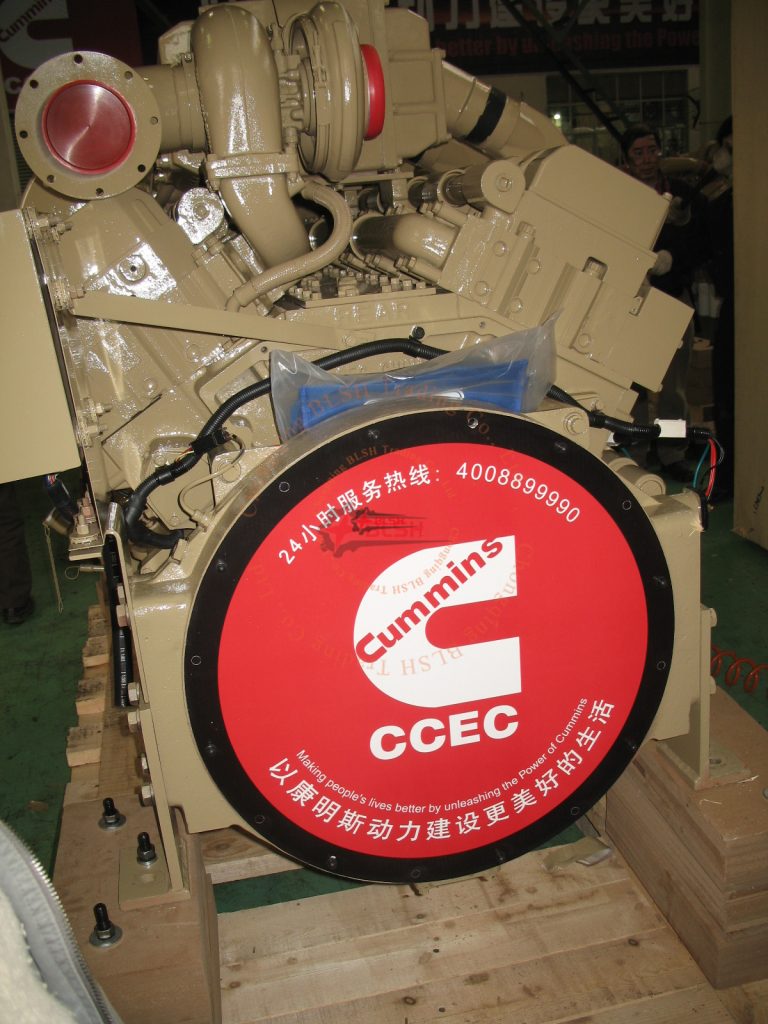

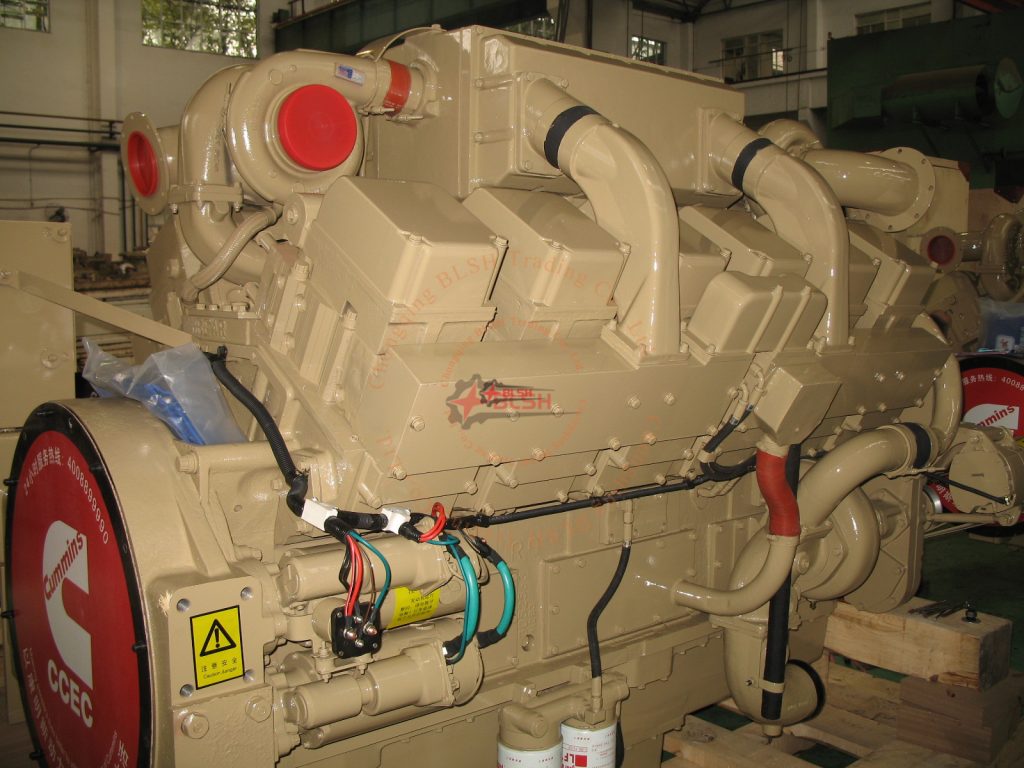

CCEC KTA38 Industrial Engines Detailed information

CCEC K38 series industrial engines are V-type 12-cylinder, 38-liter four-stroke engines with a bore of 159 mm (6.25 inches) and a stroke of 159 mm (6.25 inches). CCEC K38 series industrial engines are equipped with a PT fuel system and are equipped with a turbocharger. The main power range of CCEC K38 series industrial engines is 925 HP to 1200 HP (690 kW to 821 kW). The torque range of K38 series industrial engines is 4095 N.m to 4702 N.m.
Three configurations are available:
T: Turbocharged
A: Turbocharged + water-to-air intercooler
AA: Turbocharged + air-to-air intercooler
CCEC provides fully integrated power solutions including intake/exhaust systems, cooling modules, controls and hydraulic accessories. Specialized kits for explosion-proof environments, generator/pump sets and ultra-low temperature operations are also available.

Engine ModelRated PowerPeak Torque
KT38-C925925 HP @ 2100 RPM4095 N.m @ 1300 RPM
KTA38-C P L10501050 HP @ 2100 RPM4631 N.m @ 1300 RPM
KTA38-C P L 900900 HP @ 1800 RPM3916 N.m @ 1500 RPM
KTA38-C11001100 HP @ 1800 RPM4702 N.m @ 1500 RPM
KTA38-C12001200 HP @ 1900 RPM4475 N.m @ 1500 RPM
