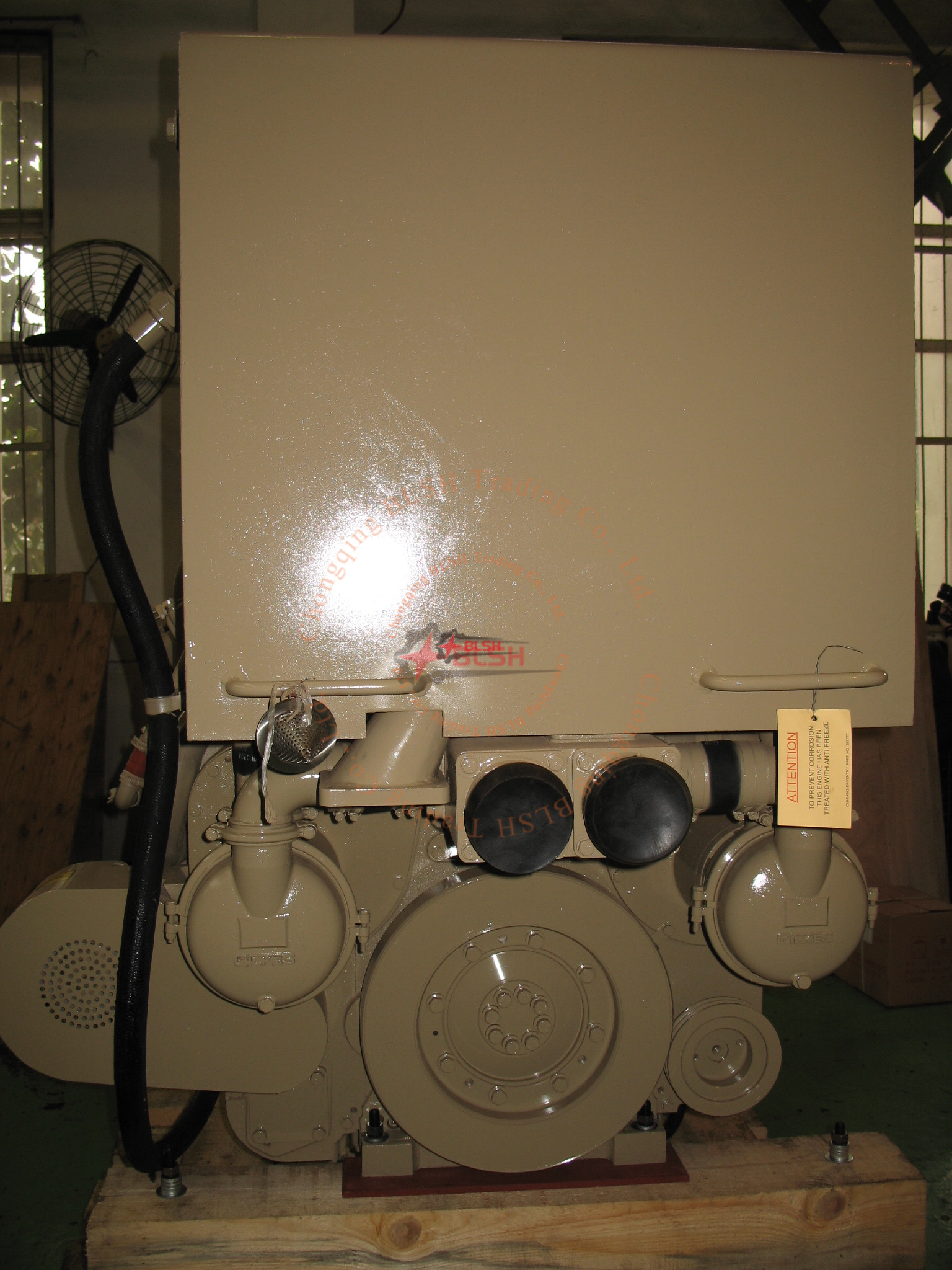

CCEC KTA50-M2-1600A Marine Engine
| Engine Model | KTA50-M2-1600A |
| Advertised Power | 1044 kW (1400 HP) @ 1600 RPM |
| Compression Ratio | 14.5 : 1 |
| Type | 4 Cycle; 16 Cylinder |
| Fuel System | PT |
| Aspiration | Turbocharged / LTA |
| Emission Standard | Euro II |
| Displacement | 50L |
| Bore * Stroke | 159 mm * 159 mm |
| Packing Size (L * W * H) | 2794 mm * 1507 mm * 1846 mm |
General Infomation of CCEC KTA50-M2-1600A Marine Engine
| General Infomation of CCEC KTA50-M2-1600A Marine Main Engine | |||
| Engine Model | KTA50-M2-1600A | Configuration | D283033MX02 |
| Curve No. | M – 6492 | CPL Code | 8063 |
| Displacement | 3068 in3 / 50 L | Bore * Stroke | 159 mm * 159 mm / 6.25 in * 6.25 in |
| Fuel System | Centry Only | Cylinders | 16 |
| Advertised Power | 1193 kW (1600 HP) @ 1900 RPM | Aspiration | Turbocharged / Jacket Water Aftercooled |
| Rating Type | Heavy Duty | Rated Engine Torque | 4423 lb.ft / 5996 N.m |
| Peak Engine Torque @ 1500 RPM | 4859 lb.ft / 6588 N.m | Brake Mean Effective Pressure | 217 PSI / 1499 kPa |
| Indicated Mean Effective Pressure | 435 PSI / 3001 kPa | Maximum Allowable Engine Speed | 2375 RPM |
| Maximum Torque Capacity from Front of Crank2 | 3202 lb.ft / 4341 N.m | Compression Ratio | 13.9 : 1 |
| Piston Speed | 1667 ft/min / 8.5 m/sec | Firing Order | 1R-1L-3R-3L-2R-2L-5R-4L-8R-8L-6R-6L-7R-7L-4R-5L |
| Normal Idle Speed Variation | N / A | High Idle Speed Range Minimum | N / A |
| Weight (Dry) – Engine Only – Average | 11389 lb. / 5166 kg | Weight (Dry) – Engine With Heat Exchanger System – Average | 12659 lb. / 5742 kg |
| Weight Tolerance (Dry) Engine Only | 10.0 3xStd Dev(± %) | Default Droop Value | 6 % |
| Minimum Droop Allowed | N / A | Maximum Droop Allowed | N / A |
| High Speed Governor Break Point | 1960 RPM | Minimum Idle Speed Setting | 650 RPM |
| Normal Idle Speed Variation | ± 25 RPM | High Idle Speed Range – Minimum | 1960 RPM |
| High Idle Speed Range – Maximum | 2128 RPM | Rated Power Production Tolerance | ± 3 % |
| Average Noise Level – Top (Idle) | 85 dBA @ 1m | Average Noise Level – Top (Rated) | 94 dBA @ 1m |
| Average Noise Level – Right Side (Idle) | 84 dBA @ 1m | Average Noise Level – Right Side (Rated) | 93 dBA @ 1m |
| Average Noise Level – Left Side (Idle) | 84 dBA @ 1m | Average Noise Level – Left Side (Rated) | 92 dBA @ 1m |
| Average Noise Level – Front (Idle) | 84 dBA @ 1m | Average Noise Level – Front (Rated) | 92 dBA @ 1m |
Scopes of Supply CCEC KTA50-M2-1600A Marine Engine
| Scopes of Supply of CCEC KTA50-M2-1600A Marine Main Engine | |||
| Exhaust System | 1. Silencer | Lubricating System | 1. Oil Pump |
| 2. Bellows | 2. Oil Filter | ||
| Fuel System | 1. Fuel Pump | Starting System | 1. Starter Motor |
| 2. Oil Cut Solenoid Valve | 2. Fywheel Housing | ||
| 3. Fuel Filter | 3. Flywheel | ||
| Charging System | 1. Alternator | Control System | 1.Stadnby Control Panel |
| Cooling System | 1. Seawater Pump | ||
| 2. Heat Exchanger | |||
System Technical Data of CCEC KTA50-M2-1600A Marine Engine
| System Technical Data of CCEC KTA50-M2-1600A Marine Main Engine | ||
| Fuel System | Avg. Fuel Consumption – ISO 8178 E3 Standard Test Cycle | 55.1 GAL/hr / 208.5 L/hr |
| Fuel Consumption at Rated Speed | 79.2 GAL/hr / 299.7 L/hr | |
| Approximate Fuel Flow to Pump | 141 GAL/hr / 533.7 L/hr | |
| Maximum Allowable Fuel Supply to Pump Temperature | 140 °F / 60 °C | |
| Approximate Fuel Flow Return to Tank | 61.8 GAL/hr / 234.0 L/hr | |
| Approximate Fuel Flow Return to Tank Temperature | 145 °F / 62.9 °C | |
| Maximum Heat Rejection to Drain Fuel | 2.7 kW / 156 Btu/min | |
| Fuel Transfer Pump Pressure Range | N / A | |
| Fuel Pressure – Pump Out / Rail Mechanical Gauge | 132 PSI / 912 kPa | |
| Fuel Pressure – Pump Out / Rail Insite Reading | 136 PSI / 940 kPa | |
| Air System | Intake Manifold Pressure | 60 in. Hg / 204 kPa |
| Intake Air Flow | 3940 CFM / 1860 L/sec | |
| Heat Rejection to Ambient | 4464 BTU/min / 78 kW | |
| Exhaust System | Exhaust Gas Flow | 8790 CFM / 4148 L/sec |
| Exhaust Gas Temperature (Turbine Out) | 807 °F / 431 °C | |
| Heat Rejection to Exhaust (Manifold) | 1077 °F / 581 °C | |
| Emissions (in accordance with ISO 8178 Cycle E3) | ||
| NOx (Oxides of Nitrogen) | 8.59 g/kW·hr / 6.41 g/HP·hr | |
| HC (Hydrocarbons) | 0.32 g/kW·hr / 0.24 g/HP·hr | |
| CO (Carbon Monoxide) | 1.16 g/kW·hr / 0.87 g/HP·hr | |
| PM (Particulate Matter) | 0.08 g/kW·hr / 0.06 g/HP·hr | |
| Cooling System | Sea Water Pump Specifications | MAB 0.08.17 – 07 / 16 / 2001 |
| Pressure Cap Rating (With Heat Exchanger Option) | 15 PSI / 103 kPa | |
| Max. Pressure Drop Across Any External Cooling System Circuit | 5 PSI / 34 kPa | |
| Engines with Low Temperature Aftercooling (LTA) – Jacket Water Aftercooled Engine (JWAC) | ||
| Coolant Flow to Cooler (with blocked open thermostat) | 392 GAL/min / 1484 L/min | |
| LTA Thermostat Operating Range (Start to Open) | 180 °F / 82 °C | |
| LTA Thermostat Operating Range (Full Open) | 202 °F / 95 °C | |
| Heat Rejection to Engine Coolant3 | 39300 BTU/min / 690 kW | |
CCEC KTA50-M2-1600A Marine Engine Product Advantages
Excellent Durability
The cylinder block and head adopt high-strength integrated design, reducing failure rates. Durable and has earned an excellent reputation.
Outstanding Performance
Equipped with an advanced PT fuel system and ultra-high injection pressure, it features unique advantages such as overspeed protection, low-pressure fuel supply, fewer pipelines, and low failure rates. This ensures optimal fuel atomization and efficient combustion, delivering high energy-saving performance. The STC oil timing control valve precisely adjusts timing, improving combustion and reducing smoke emissions during low-idle conditions.
Exhaust System
Chongqing Cummins marine engines are designed with a rational exhaust system. The wet turbocharger and water-cooled exhaust pipes effectively reduce surface temperatures, complying with SOLAS safety regulations.
Easy Maintenance
Modular design with compact and integrated components. Parts are detachable with high reusability. Shared platform design ensures high parts commonality.
Emission Compliance
Compliant with IMO Tier II emission standards. Features a marine-optimized turbocharger and intercooler from Chongqing Cummins, paired with low-temperature intercooling technology. This enhances operational efficiency, reduces fuel consumption and emissions, and improves engine reliability.
Classification Society Certifications
Certified by multiple international classification societies, including CCS and BV.
