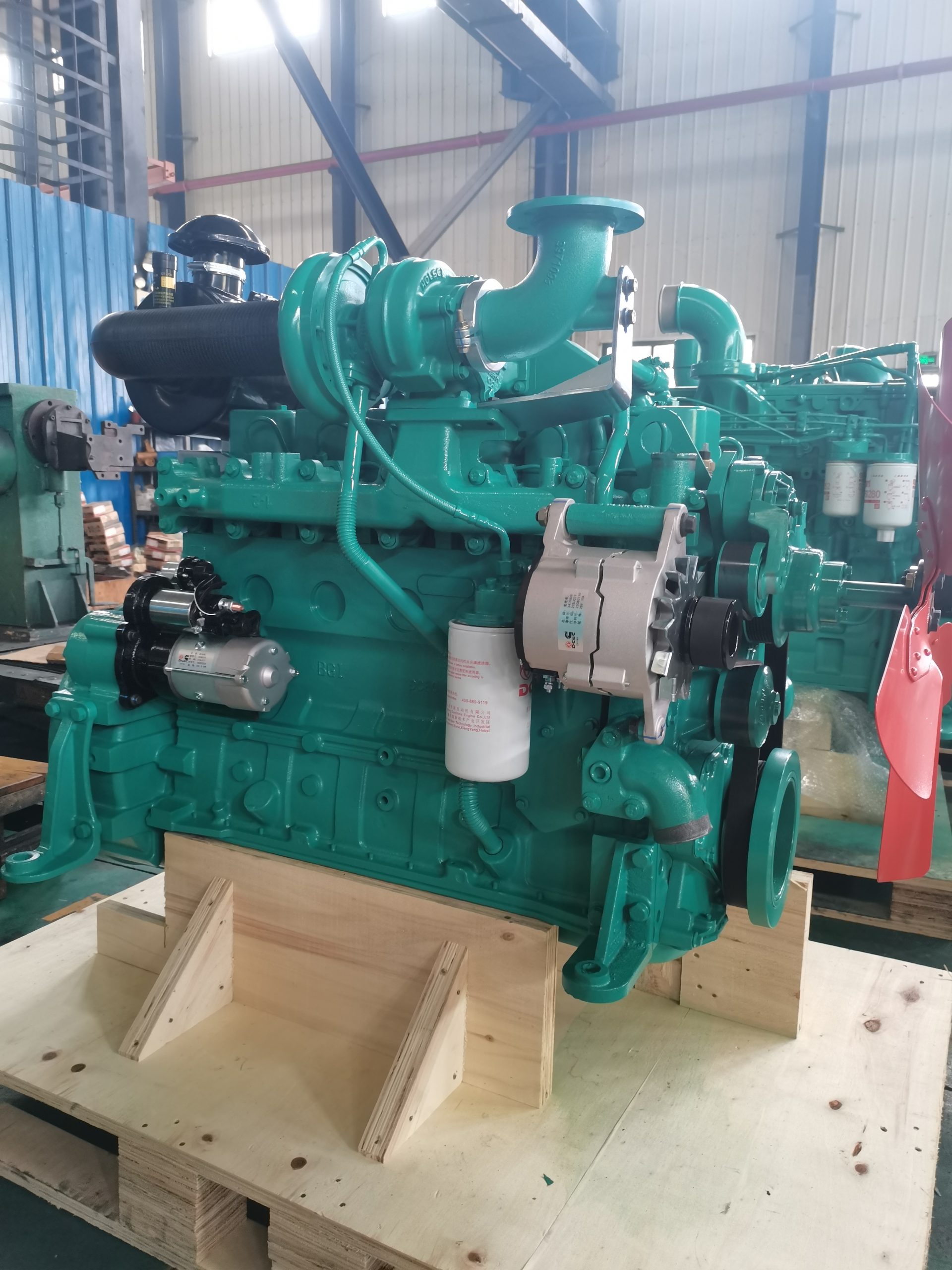

DCEC Cummins B5.9 Generator Engine – 58-165 kW Diesel Power
Need a reliable B5.9 generator engine? Contact BLSH Diesel for pricing, technical drawings, and shipping to your country.
The Cummins B5.9-G series is built on the legendary B-series platform — one of the most produced and trusted diesel engine families in history. With 5.9L displacement, six cylinders, and mechanical fuel injection, it covers 58-165 kW across naturally aspirated, turbocharged, and turbo-aftercooled configurations. The B5.9-G is the larger sibling of the B3.9 generator engine, sharing the same 102mm × 120mm bore-stroke with two additional cylinders. It powers small-to-mid-size generator sets for telecom, commercial backup, construction sites, and agricultural operations worldwide.
B5.9 Generator Engine Specifications
- Configuration: 6-cylinder inline, 4-stroke diesel
- Displacement: 5.9 L (359 cu in)
- Bore × Stroke: 102 mm × 120 mm
- Rated Speed: 1500 RPM (50Hz) / 1800 RPM (60Hz)
- Prime Power Range: 58-150 kW
- Standby Power Range: 64-165 kW
- Aspiration Options: Naturally aspirated (6BT), turbocharged (6BTA), turbo-aftercooled (6BTAA)
- Dry Weight: 780-860 kg
- Packing Size: 1000 × 910 × 1050 mm
B5.9 Generator Engine Models
The B5.9-G series offers 15 factory calibrations across three aspiration levels. Many model numbers carry multiple power ratings for different frequency markets. kVA calculated at 0.8 power factor.
6BT5.9 — Naturally Aspirated / Base Turbo (86-127 kW standby)
| Model | Calibration | Prime kW (50/60Hz) | Standby kW (50/60Hz) | Prime kVA (50/60Hz) | Standby kVA (50/60Hz) |
|---|---|---|---|---|---|
| 6BT5.9-G1 | A | 86 / — | 92 / — | 108 / — | 115 / — |
| 6BT5.9-G1 | B | 96 / — | 106 / — | 120 / — | 133 / — |
| 6BT5.9-G2 | A | 86 / 100 | 92 / 110 | 108 / 125 | 115 / 138 |
| 6BT5.9-G2 | B | 97 / — | 106 / — | 121 / — | 133 / — |
| 6BT5.9-G2 | C | 96 / 115 | 106 / 127 | 120 / 144 | 133 / 159 |
| 6BT5.9-G11 | — | 97 / — | 106 / — | 121 / — | 133 / — |
6BTA5.9 — Turbocharged (58-165 kW standby)
| Model | Note | Prime kW (50/60Hz) | Standby kW (50/60Hz) | Prime kVA (50/60Hz) | Standby kVA (50/60Hz) |
|---|---|---|---|---|---|
| 6BTA5.9-G2 | Dual frequency | 106 / 120 | 116 / 132 | 133 / 150 | 145 / 165 |
| 6BTA5.9-G3 (24V) | 2200 RPM special | 120 @ 2200 | 132 @ 2200 | 150 @ 2200 | 165 @ 2200 |
| 6BTA5.9-G8 | Low-power variant | 58 / 67 | 64 / 74 | 73 / 84 | 80 / 93 |
6BTAA5.9 — Turbo-Aftercooled (106-206 kVA standby)
| Model | Calibration | Prime kW (50/60Hz) | Standby kW (50/60Hz) | Prime kVA (50/60Hz) | Standby kVA (50/60Hz) |
|---|---|---|---|---|---|
| 6BTAA5.9-G2 | High-output | 126 / — | 140 / — | 158 / — | 175 / — |
| 6BTAA5.9-G2 | Dual-freq | 120 / 132 | 130 / 145 | 150 / 165 | 163 / 181 |
| 6BTAA5.9-G2 (12V) | 12V electrical | 120 / 132 | 130 / 145 | 150 / 165 | 163 / 181 |
| 6BTAA5.9-G12 (24V) | Top output | 140 / 150 | 155 / 165 | 175 / 188 | 194 / 206 |
| 6BTAA5.9-G15 | 50Hz standby | 145 / — | 160 / — | 181 / — | 200 / — |
| 6BTAA5.9-11-G2 | Dual-freq | 96 / 115 | 106 / 127 | 120 / 144 | 133 / 159 |
Applications
The B5.9-G series is designed for generator set duty. Its broad power range and three aspiration levels make it one of the most flexible mid-size genset engines available:
- Telecom tower generators: 6BT5.9-G1/G2 at 108-133 kVA for tower base stations, BTS shelters, and rural telecom sites
- Commercial building backup: 6BTA5.9-G2 at 133-165 kVA for offices, retail stores, hotels, and restaurants
- Small factory and workshop prime power: 6BTAA5.9-G2/G12 at 150-206 kVA for manufacturing and processing facilities
- Construction site power: Portable generator sets for tools, lighting, and site accommodation
- Agricultural operations: Irrigation pump stations, grain drying, and farmstead backup in rural areas
- Residential and small community standby: G8 variant at 73-93 kVA for large homes or small community grids
⚠️ Not for construction machinery: If you need a 5.9L Cummins engine for excavators, loaders, or forklifts, see the B5.9 Construction Machinery Engine page. Generator engines use constant-speed governors and are not interchangeable with variable-speed industrial engines.
Aspiration Levels Explained
| Prefix | Aspiration | Power Range | Best For |
|---|---|---|---|
| 6BT5.9 | Naturally aspirated / base | 86-127 kW standby | Budget-friendly telecom and small commercial standby |
| 6BTA5.9 | Turbocharged | 58-165 kW standby | Broad range including low-power (G8) and high-output (G3) variants |
| 6BTAA5.9 | Turbo + aftercooler | 106-206 kVA standby | Highest power density, hot climate and high-altitude operation |
The aftercooler in 6BTAA models cools compressed intake air before combustion, increasing air density and allowing more fuel to burn efficiently. This delivers up to 206 kVA from the same 5.9L block — and maintains performance in temperatures above 40°C or altitudes above 1000m.
Generator Set Integration
Frequency Compatibility
- 1500 RPM → 50Hz: China, Europe, Middle East, Africa, Southeast Asia, Australia
- 1800 RPM → 60Hz: North America, Central/South America, Caribbean
kVA Sizing Guide
| Application | Typical Load | Recommended Model | Genset kVA |
|---|---|---|---|
| Telecom tower / small shop | 70-100 kW | 6BT5.9-G1 (86 kW) | 108 kVA |
| Hotel / retail standby | 90-110 kW | 6BT5.9-G2 (Cal C) | 120-144 kVA |
| Mid-size commercial standby | 100-120 kW | 6BTA5.9-G2 | 133-150 kVA |
| Small factory prime | 120-140 kW | 6BTAA5.9-G2 (High-output) | 158 kVA |
| Industrial / high-demand standby | 140-160 kW | 6BTAA5.9-G12 (24V) | 175-188 kVA |
| Maximum standby (50Hz) | Up to 160 kW | 6BTAA5.9-G15 | 200 kVA standby |
Alternator Compatibility
B5.9-G engines use SAE J620 standard bell housing, compatible with:
- Stamford: UCI224 / UCI274 series (80-200 kVA)
- Leroy-Somer: TAL040 / TAL042 series
- Marathon: 224-280 series
- Mecc Alte: ECO28 / ECO32 series
B5.9-G vs. QSB5.9-G: Mechanical vs. Electronic
| Feature | B5.9-G (6BT/6BTA/6BTAA) | QSB5.9-G |
|---|---|---|
| Fuel system | Mechanical PT pump | Electronic common rail |
| Power range | 58-165 kW (broader) | 90-176 kW |
| Low-end power | From 58 kW (G8 variant) | Starts at 90 kW |
| Emissions | Mechanical, basic | ECU-controlled, aftertreatment-ready |
| Diagnostics | Basic hand tools | Electronic diagnostic tools required |
| Best for | Remote sites, broad power range, simple maintenance | Regulated markets, tighter emissions |
Choose the B5.9-G when you need the broadest power range or operate in areas without electronic diagnostic infrastructure. Choose the QSB5.9-G for markets requiring electronic emissions control. For the next generation up in displacement, see the QSB6.7 Generator Engine.
Maintenance Cost Comparison
| Item | Interval | Est. Cost (USD) | Notes |
|---|---|---|---|
| Oil change (14L) | Every 250 hrs | $55-85 | 15W-40 CI-4 diesel oil |
| Fuel filter | Every 500 hrs | $12-20 | Inline type |
| Oil filter | Every 250 hrs | $8-15 | Full-flow cartridge |
| Air filter | Every 1000 hrs | $20-35 | Dry-type element |
| Coolant replacement | Every 2 years | $30-50 | Extended-life OAT coolant |
| Valve clearance check | Every 2000 hrs | $40-65 | Adjust to factory specs |
Annual maintenance for a standby generator running 500 hours/year: approximately $220-400. Turbo-aftercooled models may require charge-air cooler inspection every 2000 hours.
Compare with Similar Generator Engines
| Specification | Cummins B5.9-G | Yuchai YC6B | Weichai WP6 |
|---|---|---|---|
| Configuration | 6-cyl, 5.9L | 6-cyl, 6.8L | 6-cyl, 6.75L |
| Power range | 58-165 kW | 90-150 kW | 100-160 kW |
| Max standby kVA | 206 kVA | 188 kVA | 200 kVA |
| Weight | 780-860 kg | 750 kg | 720 kg |
| Aspiration options | NA / Turbo / Turbo-A/C | Turbo / Turbo-A/C | Turbo / Turbo-A/C |
The B5.9-G’s key advantage is the unmatched low-end starting point (58 kW via the G8 variant) and the proven B-series parts availability worldwide. For lower power below 58 kW, see the B3.9 Generator Engine (3.9L 4-cyl, 24-97 kW) or QSB3.9 Generator Engine. For higher power above 165 kW, step up to the
