BFCEC Cummins

105HP-552HP

Powering Your Success: The Cummins Engine Lineup
Our versatile lineup spans from the light-duty F-Series (2.8L/3.8L) and medium-duty 4.5L to the heavy-duty X-Series (X11, X12, X13, and X12N Gas).
Technological Edge:
The F-Series features fully electronically controlled, high-pressure direct injection. Notably, the ISF4.5 leads its class, delivering a robust 210 HP and 760 Nm of torque to handle demanding tasks with ease.
Market Dominance:
From long-haul tractors to specialized machinery, the X-Series does it all. These engines optimize efficient logistics—including cold chain, hazardous chemicals, and express delivery. Beyond logistics, they dominate the construction sector, providing unstoppable power for mining, heavy-load transport, and mixer trucks.

BFCEC cummins

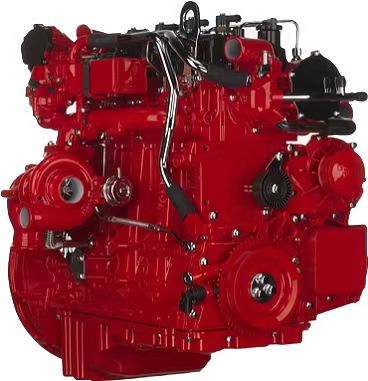

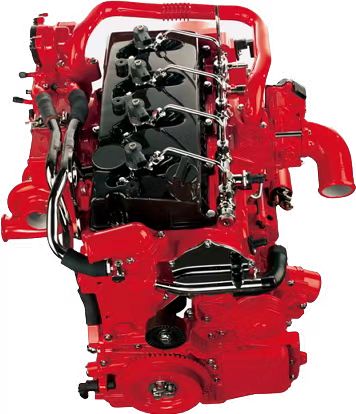

BFCEC ISF2.8 Series Engines

F-series 2.8L

ISF2.8 Series Specification

typeIn-line 4-cylinder
Displacement(L)2.78
Maximum Power (HP)161
Maximum Torque (Nm)360
Dry Weight(Kg)214
Length (mm)642
Width (mm)655
Height (mm)718
型号Power HP(KW)（RPM）Torque（N.m）Emission
ISF2.8s3129T129 (96) @ 3200310 @ 1600-2700Euro III
ISF28s3148T148 (110) @ 3200360 @ 1800-2700Euro III
ISF2.8s4107P107 (80) @ 3600280 @ 1400-2400Euro III
ISF2.8s4129P129 (96) @ 3600280 @ 1400-3000Euro III
280 @ 1250-3000Euro III
ISF2.8s4161P161 (120) @ 3600360 @ 1500-3000Euro IV
ISF2.8s4129T129 (96) @ 3200310 @ 1600-2700Euro IV
ISF2.8s4129V129 (96) @ 3200310 @ 1400-2700Euro IV
ISF2.8s4148T148 (110) @ 3200360 @ 1800-2700Euro IV
ISF2.8s4148V148 (110) @ 3200360 @ 1500-2700Euro IV
ISF2.8s4117V117 (87) @ 3200260 @ 1300-3200Euro IV
ISF2.8s5161P161 (120) @ 3200360 @ 1600-3200Euro IV
lSF2.8s5129P129 (96) @ 3600280 @ 1200-3000Euro V
ISF2.8s5148T148 (110) @ 2900360 @ l500-2900Euro V
ISF2.8s5129T129 (96) @ 2900315 @ 1500-2900Euro V
BFCEC cummins

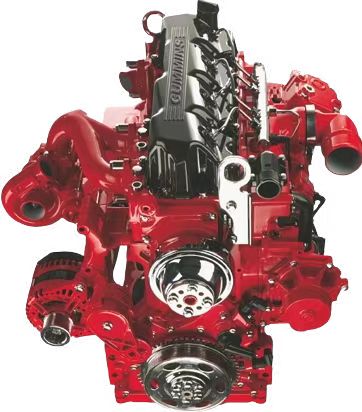

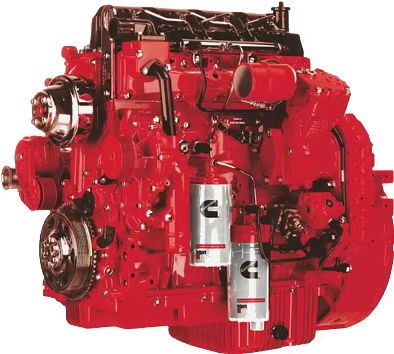

BFCEC ISF3.8 Series Engines

F-series 2.8L

ISF3.8 Series Specification

typeIn-line 4-cylinder
Displacement(L)3.78
Maximum Power (HP)168
Maximum Torque (Nm)600
Dry Weight(Kg)355
Length (mm)810
Width (mm)695
Height (mm)806
ModelRated Power (RPM)Peak torque(N.m)emission
ISF3.8s3141141(105) @ 2600450 @ 1200-2200Euro III/Country III
ISF3.8s3154154 (115) @ 2600500 @ 1200-1900Euro III/Country III
ISF3.8s3168168 (125) @ 2600600 @ 1300-1700Euro III/Country III
F3.8s3141141(105) @ 2600450 @ 1300-1500Euro III/Country III
F3.8s3122122(90) @ 2600380 @ 1300-1500Euro III/Country III
ISF3.8s4141141(105) @ 2600450 @ 1200-2200Euro IV/National IV
ISF3.8s4154154 (115) @2600500 @ 1200-1900Euro IV/National IV
ISF3.8s4168168(125) @ 2600600 @ 13001700Euro IV/National IV
ISF3.8e4R141141 (105) @ 2600450 @ 1200-2200Euro IV/National IV
ISF3.8e4R154154 (115) @ 2600500 @ 1200-1900Euro IV/National IV
ISF3.8e4R168168 (125) @ 2600600 @ 1300-1700Euro IV/National IV
ISF3.8s5141141(105) @ 2600450 @ 1200-2200Euro V/Country V
ISF3.8s5154154 (115) @ 2600500 @ 1200-1900Euro V/Country V
ISF3.8s5168168(125) @ 2600600 @ 1300-1700Euro V/Country V
BFCEC cummins

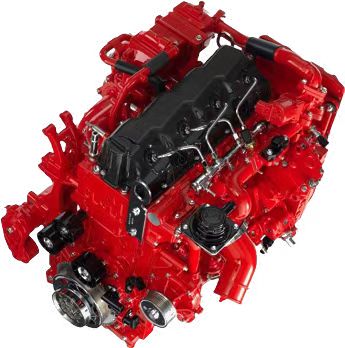

BFCEC ISF4.5 Series Engines

F-series 2.8L

ISF4.5 Series Specification

typeIn-line 4-cylinder
Displacement(L)4.5
Maximum Power (HP)210
Maximum Torque (Nm)850
Dry Weight(Kg)380
Length (mm)888
Width (mm)818
Height (mm)700
ModelRated Power (RPM)Peak torque(N.m)content (9)
F4.5NS6B240A 240240Euro V/Country V
F4.5NS6B220 220220820N.mEuro V/Country V
ISF4.5S5210 210210760N.mEuro IV/National IV
ISF4.5S5185 185185700N.mEuro IV/National IV
F4.5NS6B240 240240Euro V/Country V
F4.5NS6B190 190190700N.mEuro V/Country V
ISF210 210210760N.mEuro IV/National IV
F4.5NS6B260 246260Euro V/Country V
ISF4.5 210210760N.mEuro V/Country V
F4.5NS6B200A 200200Euro V/Country V
ISD180 62 180180732N.mEuro IV/National IV
F4.5NS6B220A 220220Euro V/Country V
F4.5NS6B210 210210760N.mEuro V/Country V
ISF4.5S5165 165165650N.mEuro IV/National IV
ISF4.5E6150 150150650N.mEuro V/Country V
ISF4.5E6180 180180700N.mEuro IV/National IV
ISF4.5E6210210850N.mEuro V/Country V

Engine Overview

The Cummins F-Series diesel engines are manufactured by Beijing Foton Cummins Engine Company (BFCEC). These engines are designed for light-duty and medium-duty commercial vehicle applications, offering excellent fuel efficiency, compact structure, and reliable performance.

The F-Series engine family includes the ISF2.8, ISF3.8, and ISF4.5 platforms, which cover displacement ranges from 2.8 liters to 4.5 liters and power outputs from approximately 46 horsepower to over 210 horsepower.

These engines are widely used in light trucks, delivery vans, pickup trucks, light buses, and small construction equipment.

F-Series Engine Platforms

Engine ModelDisplacementPower RangeMax Torque
ISF2.82.8 L107-161 HP360 Nm
ISF3.83.8 L122-168 HP600 Nm
ISF4.54.5 L150-210 HP850 Nm
  • ISF2.8 engines can deliver up to 161 HP and 360 Nm torque.
  • ISF3.8 engines provide up to 168 HP and 600 Nm torque.
  • ISF4.5 engines can reach 210 HP and 850 Nm torque.

ISF2.8 Engines

Typical Applications：

  • pickup trucks
  • vans
  • light trucks

Features：

  • compact design
  • high fuel efficiency

ISF3.8 Engines

Typical Applications：

  • medium light trucks
  • city logistics vehicles

Features：

  • higher torque output
  • strong reliability

ISF4.5 Engines

Typical Applications：

  • medium commercial trucks
  • construction equipment

Features：

  • higher power output
  • heavy-duty capability

Application Scenarios

Light Commercial Vehicles

F-Series engines are widely used in delivery vans and urban logistics vehicles.

Pickup Trucks

Compact engine size makes it suitable for pickup trucks and utility vehicles.

Light Buses

Provides stable power and fuel efficiency for passenger transport.

Small Construction Equipment

These engines are also used in small loaders, forklifts, and construction machin

FAQ

What is the Cummins F Series engine?

The Cummins F Series is a light-duty diesel engine platform manufactured by BFCEC, including the ISF2.8, ISF3.8, and ISF4.5 models.

What vehicles use Cummins F Series engines?

These engines are commonly used in light trucks, delivery vans, pickup trucks, buses, and small construction equipment.

What is the power range of Cummins F Series engines?

Cummins F Series engines typically deliver power outputs from about 46 HP to over 210 HP, depending on the engine model.
