B5.9 Generator Engines Basic information
Engine Type: | 6 – Cylinder; In – line; 4 – Cycle |
Displacement: | 5.9 L |
Rated Speed: | 1500 – 1800 RPM |
Governed(kW@RPM): | 86 kW to 150 kW@1500 – 1800 RPM |
Standby Power(kW@RPM): | 92 kW to 165 kW@1500 – 1800 RPM |
Bore * Stroke: | 102 mm*120 mm |
Packing Size (L * W * H): | 1000mm * 910mm * 1050mm |
Dry Weight: | 780-860kg |
DCEC B5.9 Generator Engines Detailed information
The text you provided describes the Dongfeng Cummins Joint Venture Plant (DCEC), which was established in 1986 as a joint venture between Dongfeng and Cummins USA, with Cummins holding a 50% stake. The plant operates under Cummins’ technology and product line, producing engines that are widely used in various heavy-duty applications.

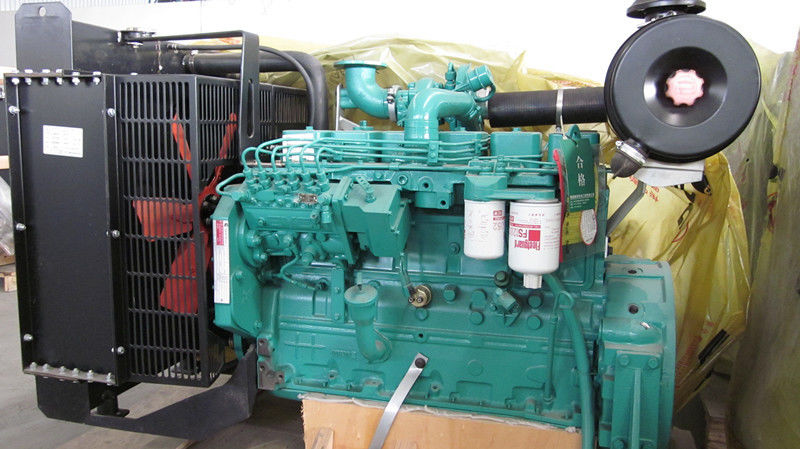

One of the notable engines mentioned is the Cummins 6BT5.9-G, which is known for its versatility and reliability. It is commonly used in:
Heavy trucks
Excavators
Road rollers
Bulldozers
Cranes
Water pumps
Engine power packs
Key Features of the Cummins 6BT5.9-G Engine:
High Fuel Efficiency: Designed to optimize fuel consumption, making it cost-effective for heavy-duty operations.
Advanced Integrated Design: Incorporates Cummins’ advanced engineering for seamless performance.
Sophisticated Manufacturing: Ensures high-quality production standards.
Holset Exhaust Gas Wastegate: Enhances turbocharger efficiency and engine performance.
Rotor High-Pressure Fuel Pump: Delivers precise fuel injection for better combustion and power output.
Platform Honing Designed Cylinder Liner: Improves durability and reduces friction, contributing to longer engine life.
Durable and Excellent Performance: Known for its reliability and ability to perform under demanding conditions.
This engine is a testament to Cummins’ commitment to innovation, efficiency, and durability in the field of diesel engines. It is widely trusted in industries requiring robust and dependable power solutions.
Engine Model | Governed(kW@RPM) | Standby Power(kW@RPM) |
6BT5.9-G1 | 86@1500 | 92@1500 |
6BT5.9-G1 | 96@1500 | 106@1500 |
6BT5.9-G2 | 86@1500 100@1800 | 92@1500 110@1800 |
6BT5.9-G2 | 97@1500 | 106@1500 |
6BT5.9-G2 | 96@ 1500 115@1800 | 106@1500 127@1800 |
6BT5.9-G11 | 97@1500 | 106@1500 |
6BTA5.9-G2 | 106@1500 120@1800 | 116@1500 132@1800 |
6BTA5.9-G3(24V) | 120@2200 | 132@2200 |
6BTA5.9-G8 | 58@1500 67@1800 | 64@1500 74@1800 |
6BTAA5.9-G2 | 126@1500 | 140@1500 |
6BTAA5.9-G2 | 86@1500 100@1800 | 132@1500 145@1800 |
6BTAA5.9-G2(12V) | 120@1500 132@1800 | 130@1500 145@1800 |
6BTAA5.9-G12(24V) | 140@1500 150@1800 | 155@1500 165@1800 |
6BTAA5.9-G15 | 145@1500 | 160@1500 |
6BTAA5.9-11-G2 | 96@1500 115@1800 | 106@1500 127@1800 |
